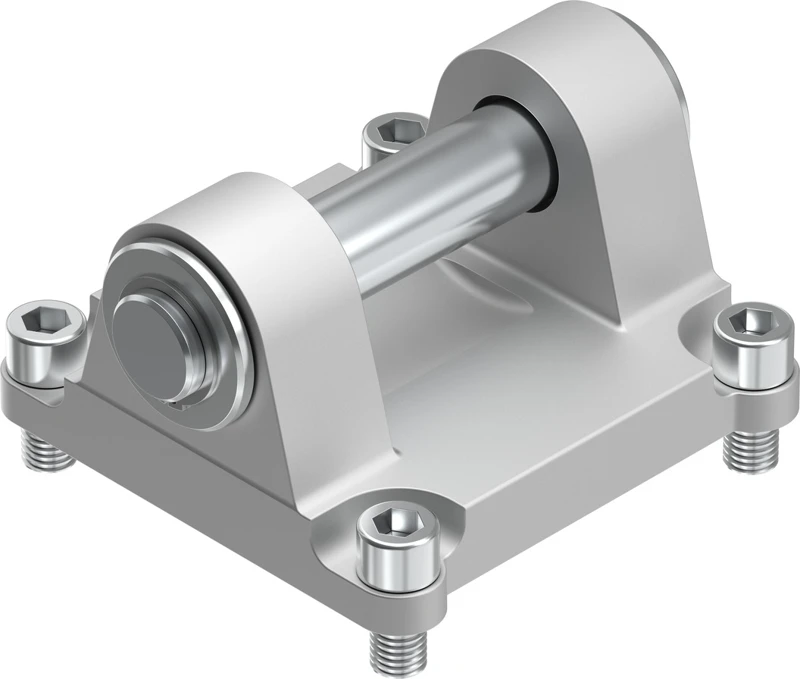

Compact cylinders ADN/AEN Accesssories, Swivel flange, SNCB-125

Specifications • Compact cylinders ADN/AEN, Accessories • Swivel flange • Size 125 • Based on standard ISO 15552 • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Suitability for the production of Li-ion batteries Metals with more than 5% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils • Ambient temperature -40 °C ... 90 °C • Product weight 1860 g • Note on materials RoHS-compliant • Material mounting Die-cast aluminium • Material bolt Galvanised steel • Material bearing Polymer • Material disc Galvanised steel • Material screws Galvanised steel • Material lock Spring steel, galvanised
