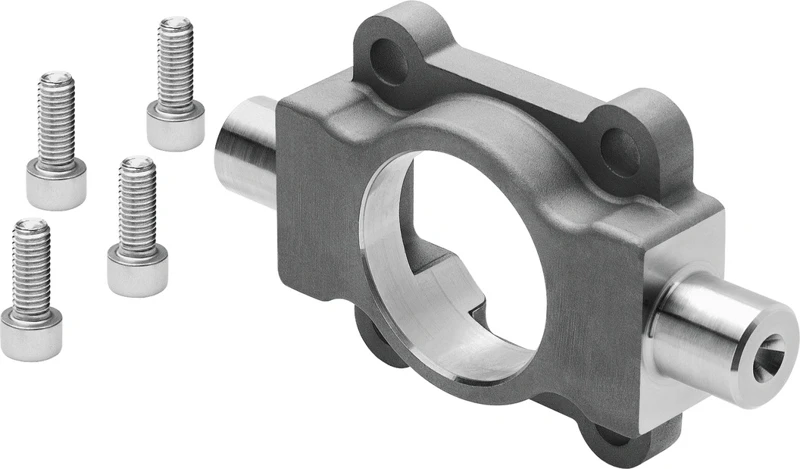

Compact cylinders ADN/AEN Accesssories, Trunnion flange, ZNCF-100
SKU: 174416
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinders ADN/AEN
• Accessories, Trunnion flange
• Size 100
• Based on standard ISO 15552
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -40 °C ... 150 °C
• Product weight 2254 g
• Note on materials RoHS-compliant
• Material mounting Stainless steel casting
• Material screws Steel Galvanised
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinders, to ISO 21287, ADN/AEN
• Piston diameter 12 ... 125 mm
• Conforms to ISO 21287
• With self-adjusting pneumatic end-position cushioning PPS
• Up to 50% less installation space than comparable standards-based cylinders to ISO 15552
• For position sensing
• High flexibility thanks to the wide range of variants
• Piston rod with female or male thread
• Wide range of variants
