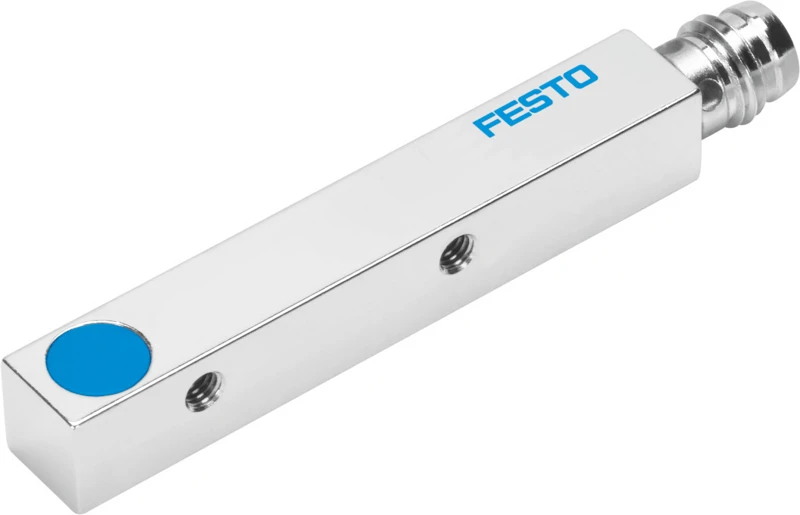

Proximity sensor, SIES-Q8B-NO-S-L
SKU: 174551
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proximity switches SIES, inductive
• Size 8x8x59 mm
• Switching output NPN
• Switching element function N/C contact
• Electrical connection 3-pin - M8x1 - Plugs
• Operational voltage range DC 10 V - 30 V
• Rated operating distance 1.5 mm
• Assured operating distance 1.2 mm
• Reduction factors Aluminium = 0.45, Stainless steel St 18/8 = 0.8, Copper = 0.4, Brass = 0.55, Steel St 37 = 1.0
• Ambient temperature -25 °C ... 70 °C
• Repetition accuracy 0.07 mm
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SIES-Q
• The cylindrical versions have been supplemented with square designs in various sizes.
• The extremely space-saving design makes it easy to install.
• Block design
• Flush mounting
• LED switching status indication
