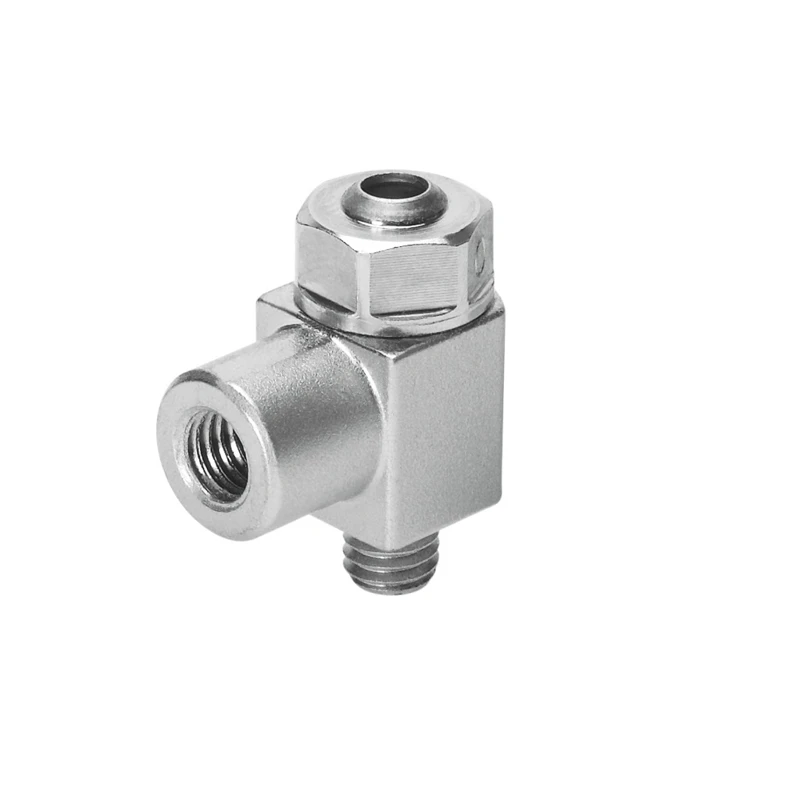

Throttle valve, GRLO-M3

Specifications • Throttle valve GRLO • Valve function Flow control function • Pneumatic connection, port 1 M3 • Pneumatic connection, port 2 M3 • Adjustment component Slotted head screw • Type of mounting Screw-in • Standard nominal flow rate in flow control direction 18 l/min • Operating pressure 0 bar ... 10 bar • Ambient temperature -10 °C ... 60 °C • Mounting position optional • Symbol 00991454 • Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) 33 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
