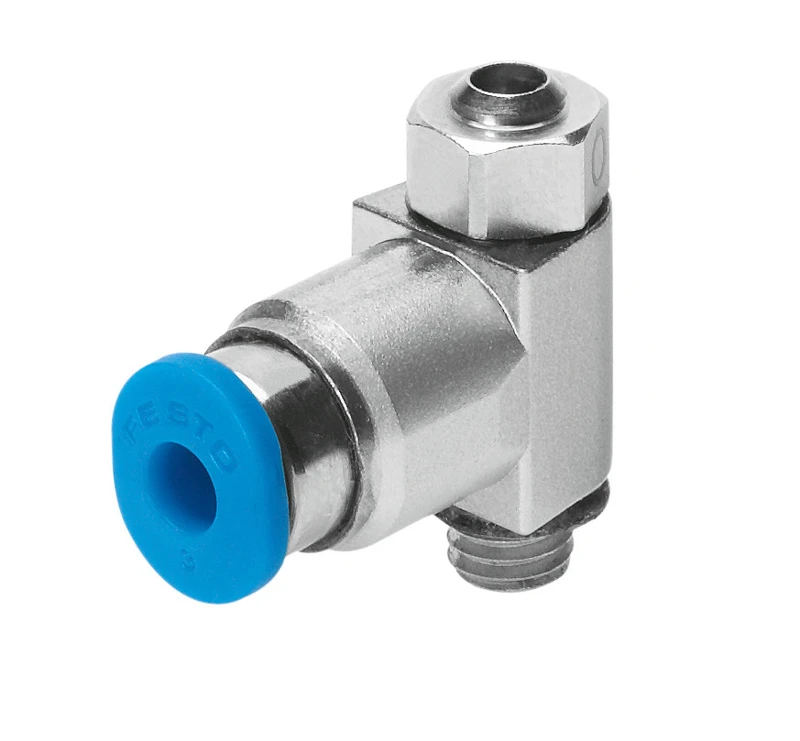

Throttle valve, GRLO-M3-QS-3
SKU: 175042
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Throttle valve GRLO
• Valve function Flow control function
• Pneumatic connection, port 1 M3
• Pneumatic connection, port 2 QS-3
• Adjustment component Slotted head screw
• Type of mounting Screw-in
• Standard nominal flow rate in flow control direction 41 l/min
• Operating pressure 0 bar ... 10 bar
• Ambient temperature -10 °C ... 60 °C
• Mounting position optional
• Symbol 00991454
• Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) 95 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
Throttle valve GRLO
• Adjustable unidirectional/bidirectional flow control valve.
• Flow control valve, flow control at both ends
• Standard or mini flow control valve
• Precision adjustment for low and medium speeds
• Connections: thread at both ends, thread/push-in connector
• Connections: L-outlet
• Metal version
