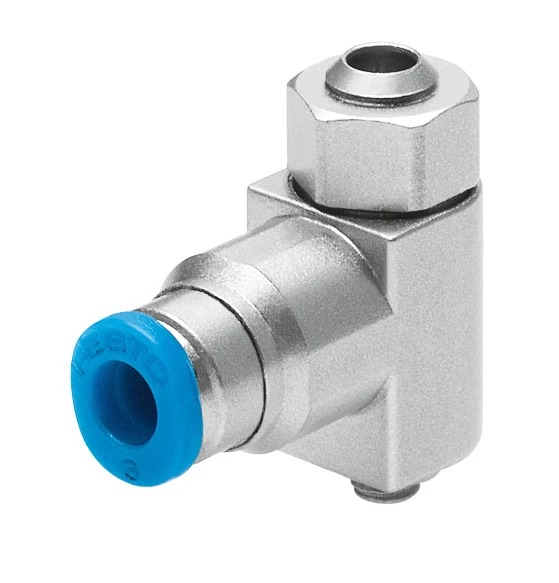

One-way flow control valve, GRLA-M5-QS-3-LF-C
SKU: 175053
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slide DGST
• Accessories, One-way flow control valve GRLA for connection set DADG-AK-G8-… , For regulating velocity
• Valve function Exhaust air one-way flow control function
• Pneumatic connection, port 1 QS-3
• Pneumatic connection, port 2 M5
• Adjustment component Slotted head screw
• Type of mounting Screw-in
• Standard nominal flow rate in flow control direction 40 l/min
• Standard nominal flow rate in blocked direction 46 l/min ... 70 l/min
• Operating pressure 0.2 bar ... 10 bar
• Operating pressure 2.9 psi ... 145 psi
• Ambient temperature -10 °C ... 60 °C
• Maritime classification See certificate
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valve GRxA, GRxZ
• Tried and tested for precise adjustment of the flow rate. The combination of polymer and metal makes it lightweight, compact and sturdy.
• Functional combination of one-way flow control valve and piloted check valve
• Flow control valve, flow control at one end
• Polymer, metal or stainless steel design
• Standard, mini, in-line variants with different flow rates
• Connections: thread at both ends, push-in connector at both ends, thread/push-in connector
