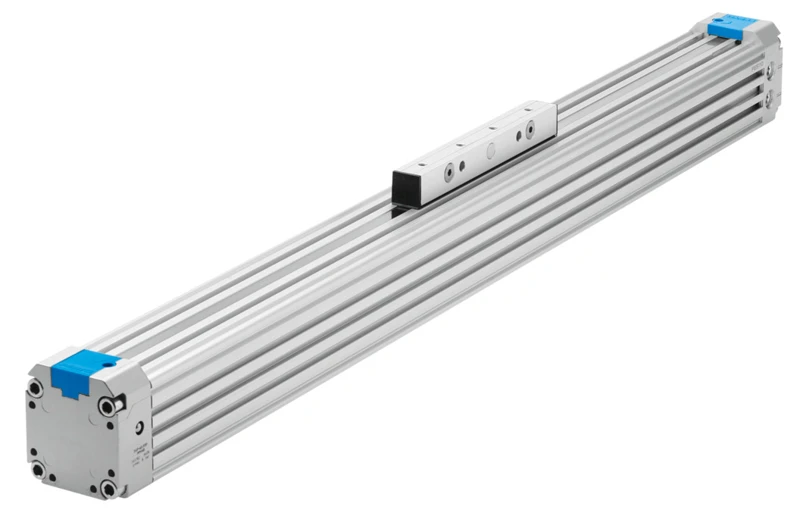

Linear drive, DGPL-40- -
SKU: 175136
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drives DGPL, with guide
• Stroke 10 mm ... 3000 mm
• Piston diameter 40 mm
• Cushioning Pneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve
• Mounting position optional
• Guide Plain-bearing guide, Basic guide, Recirculating ball bearing guide, Heavy-duty guide
• Coupling design Positive-locking (slot)
• Position detection Via proximity switch, Via attached displacement encoder, With integrated displacement encoder
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 754 N
Buy currently uses Select Automation shop pricing and checkout.
Linear drive, metric DGPL
• This positioning axis can be combined with the modular system for handling and assembly technology.
• Recirculating ball bearing guide or heavy-duty guide
• Precise and resilient
• Wide range of variants for customised applications
• The modern alternative is the linear drive DGC
