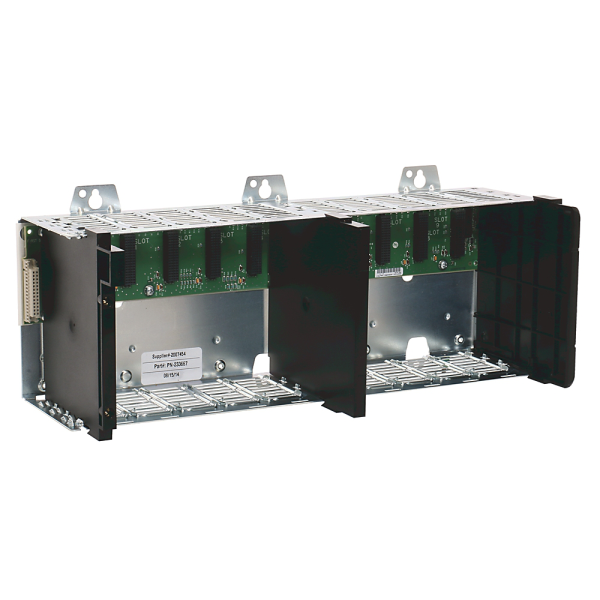

ControlLogix 10 Slots Chassis
SKU: 1756-A10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-A10 is a 10-slot chassis that may host ControlLogix modules such as CPUs, I/O, communication, and specialty modules.
It acts as the physical and electrical backbone of a ControlLogix system, allowing high-speed data interchange between modules via the integrated backplane.
Slot Capacity: 10 slots provide for modular versatility.
Backplane communication enables high-speed data flow between modules.
Redundant Power Support: Dual power supplies can be used to increase availability.
Open-style design requires installation in a protective enclosure.
Horizontal Mounting: It must be mounted horizontally on a rear panel.
Buy currently uses Select Automation shop pricing and checkout.
Physical Characteristics:
Slots: 10 module slots.
Mounting: Horizontal back-panel only.
Minimum Cabinet Size: 508 × 762 × 203 mm (20 × 30 × 8 in).
Weight: Approx. 1.45 kg (3.2 lb).
Enclosure Type: Open style (requires protective enclosure).
Electrical Ratings:
Backplane Current Capacity:
@ 1.2V DC: 1.5 A.
@ 3.3V DC: 4 A (chassis) / 4 A (per slot).
@ 5.1V DC: 15 A (chassis) / 6 A (per slot).
@ 24V DC: 2.8 A (chassis and per slot).
Power Dissipation (Max): 5 W.
Isolation Voltage: Determined by installed modules and power supply.
Environmental Ratings:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Humidity: 5% to 95% non-condensing.
Shock (Operating): 30 g.
Shock (non-operating): 50 g.
Vibration: 2 g @ 10–500 Hz.
Temperature Code:
T5 (North America).
T4/T5 (IEC).
