ControlLogix 10 Slots Chassis
SKU: 1756-A10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

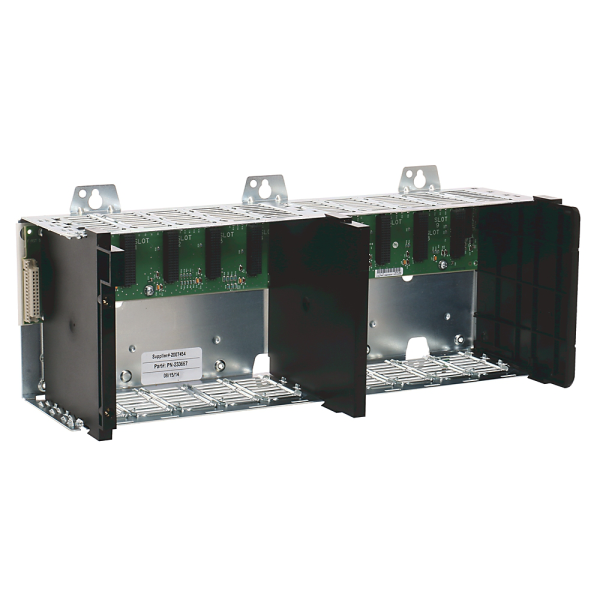

The 1756-A10K is a 10-slot ControlLogix chassis with conformal coating, as indicated by the suffix "K".
This layer protects internal circuitry from moisture, dust, and corrosive gasses, making it perfect for use in tough industrial environments such as chemical plants, mines, and outdoor installations.
It serves as a high-speed backplane for module communication while also distributing power to all mounted components.
The chassis may only be mounted horizontally and is compatible with all standard ControlLogix modules, such as controllers, I/O, and communication interfaces.
Slot Capacity: 10 module slots for controllers, I/O, and communication modules.
Backplane Communication: High-speed data transfer between modules.
Conformal Coating: Enhanced protection for industrial settings.
Mounting: Horizontal only, back-panel installation.
Compatibility: Works with ControlLogix power supplies and modules.
Buy currently uses Select Automation shop pricing and checkout.
General:
10-slot chassis for ControlLogix modules.
Model: 1756-A10K (with conformal coating for harsh environments).
Supports controllers, I/O, and communication modules.
Horizontal mounting only.
Open-style enclosure (requires protective cabinet).
Physical:
Width: 483 mm (19.0 in).
Height: 169 mm (6.65 in).
Depth: 145 mm (5.71 in).
Weight: ~1.45 kg (3.2 lb).
Minimum cabinet size: 762 × 507 × 203 mm.
Electrical:
Backplane current capacity:
1.2V DC: 1.5 A.
3.3V DC: 4 A chassis / 4 A per slot.
5.1V DC: 15 A chassis / 6 A per slot.
24V DC: 2.8 A chassis / 2.8 A per slot.
Power consumption: 1.8 W.
Power dissipation: 6.1 BTU/hr.
Isolation voltage: Depends on installed modules and power supply.
Environmental:
Operating temperature: 0°C to 60°C.
Storage temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Shock (operating): 30 g.
Shock (non-operating): 50 g.
Vibration: 2 g @ 10–500 Hz.
Temperature code: T5 (North America), T4/T5 (IEC).
