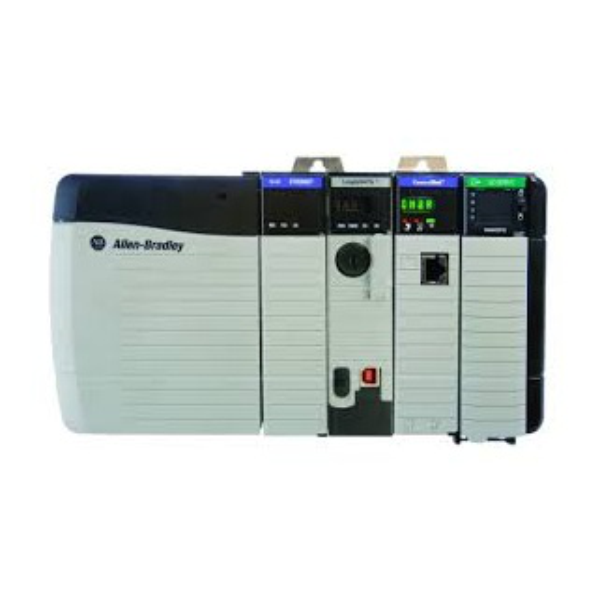

ControlLogix 10 Slot XT Chassis
SKU: 1756-A10XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A 10-slot chassis designed to support ControlLogix modules under harsh environmental conditions, the 1756-A10XT is part of the ControlLogix-XT platform.
It can accommodate up to ten standard or XT-rated modules, which include controllers, I/O, communication, and custom modules.
The chassis, as part of the XT series, is designed to handle extreme temperatures, high humidity, and corrosive environments, making it perfect for outdoor installations, chemical plants, and other tough industrial locations.
It has a durable aluminium frame, a passive backplane, and DIN rail or panel mounting choices.
This chassis is intended to be used with XT-rated power supply and modules, assuring system integrity and reliability in demanding environments.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical & Physical:
Slots: 10 module slots (including one for power supply).
Dimensions:
Width: ~15.35 in (390 mm).
Height: ~5.71 in (145 mm).
Depth: ~5.71 in (145 mm).
Weight: ~2.7 kg (6 lbs).
Mounting Options: Panel or DIN rail.
Power Supply Position: Left-most slot only.
Backplane Type: Passive backplane for ControlLogix modules.
Environmental Ratings:
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Corrosion Resistance: Meets ANSI/ISA-S71.04 Class G1, G2, G3.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
