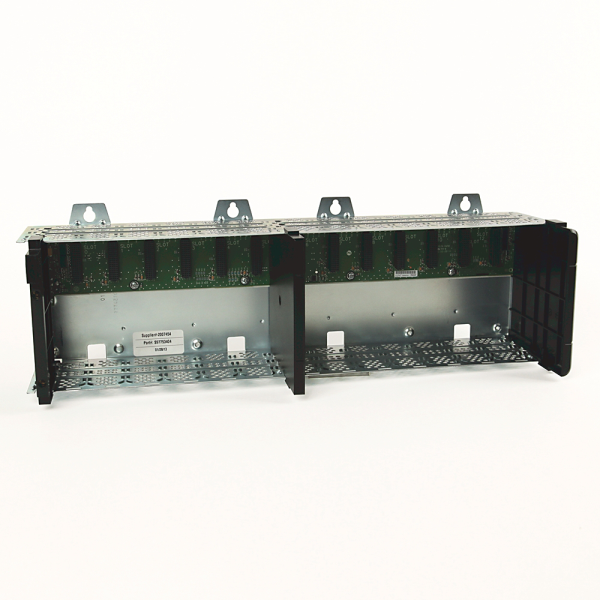

ControlLogix 13 Slots Chassis
SKU: 1756-A13
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-A13 is a 13-slot chassis for the ControlLogix platform, providing additional capacity for large-scale automation applications.
It can hold up to 12 standard ControlLogix modules with one slot allocated for a power supply, making it perfect for complicated applications that require many controllers, I/O modules, communication interfaces, and specialized components.
Built with a passive backplane, the chassis allows for continuous data interchange between modules and supports hot-swapping, allowing users to replace or add modules without shutting down the system.
Its durable metal frame and versatile mounting options make it appropriate for a variety of industrial settings.
Whether you're expanding a production line or merging numerous control domains, the 1756-A13 offers the space and dependability required for high-performance automation.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical & Physical:
13 slots total (1 for power supply, 12 for modules).
Dimensions:
Width: 588 mm (23.15 in).
Height: 169 mm (6.65 in).
Depth: 145 mm (5.71 in).
Weight: Approx. 1.90 kg (4.2 lb).
Mounting: Horizontal back-panel (DIN rail or panel mount).
Backplane: Passive backplane for ControlLogix modules.
Backplane Current Capacity:
1.2V DC: 1.5 A max per slot.
3.3V DC: 4.0 A max per slot.
5.1V DC: 6.0 A max per slot (15.0 A total).
24V DC: 2.8 A max per slot.
Power & Thermal:
Power Consumption: 1.8 W.
Thermal Dissipation: 6.1 BTU/hr.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
