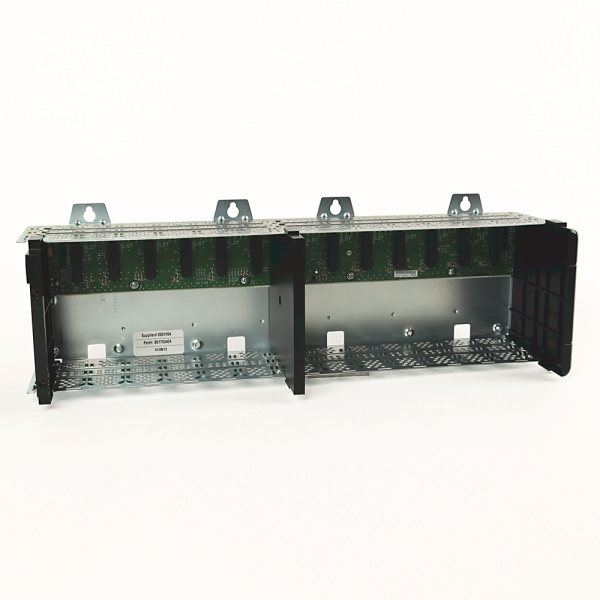

ControlLogix 13 Slots Chassis
SKU: 1756-A13K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-A13K is a 13-slot chassis for Rockwell Automation's ControlLogix platform.
The "K" suffix denotes conformal coating, which shields internal circuitry from moisture, dust, and corrosive gasses, making it appropriate for tough or high-humidity conditions.
This chassis provides a high-speed backplane for module communication and is compatible with a wide range of ControlLogix components, including controllers, I/O, and communication modules.
It's designed for horizontal placement and works with redundant power supplies, making it ideal for mission-critical applications.
13 module slots allow for a versatile system setup.
Conformal coating improves durability in severe situations.
High-speed backplane enables rapid data flow between modules.
only for horizontal mounting.
Compatible with ControlLogix power supplies and modules.
Open-style chassis (installed in a protective shell).
Buy currently uses Select Automation shop pricing and checkout.
General Overview:
13-slot chassis for ControlLogix® modules.
Model: 1756-A13K (with conformal coating for harsh environments).
Designed for horizontal mounting only.
Open-style chassis (requires installation in a protective enclosure).
Mechanical Specifications:
Dimensions: 609 × 266 × 138 mm (24 × 10.5 × 5.4 in).
Weight: Approx. 1.9 kg (4.2 lb).
Frame: Aluminium with coated PCB.
Slot pitch: Standard ControlLogix spacing.
Electrical Specifications:
Backplane current capacity:
1.2V DC: 1.5 A (chassis total).
3.3V DC: 4 A (per slot and total).
5.1V DC: 6 A (per slot), 15 A (total).
24V DC: 2.8 A (per slot and total).
Power dissipation: 5.4 W.
Isolation voltage: Defined by installed modules and power supply.
Environmental Ratings:
Operating temperature: 0°C to 60°C.
Storage temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Shock (operating): 30 g.
Shock (non-operating): 50 g.
Vibration: 2 g @ 10–500 Hz.
Temperature code: T5 (North America), T4/T5 (IEC).
