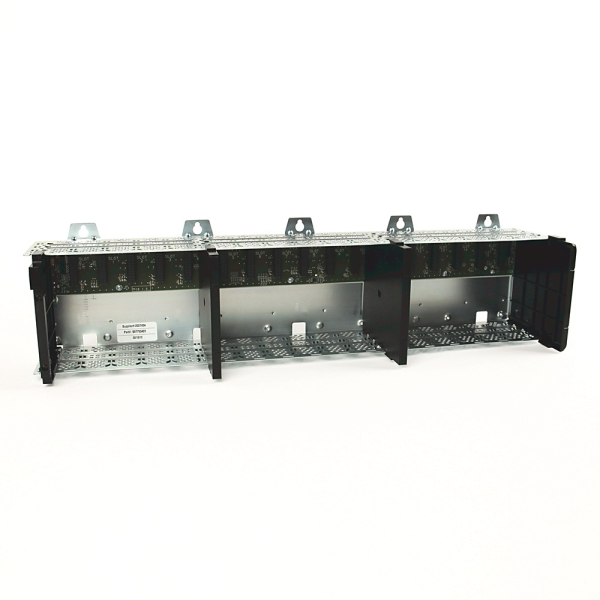

ControlLogix 17 Slots Chassis
SKU: 1756-A17
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-A17 is a high-capacity 17-slot chassis developed for the ControlLogix platform, making it appropriate for large-scale automation systems with substantial module integration.
It can hold up to 16 ControlLogix modules, plus one slot for a power supply, making it ideal for complicated control structures with many controllers, I/O, communication, and specialty modules.
Built with a passive backplane, the chassis allows for high-speed data flow between modules and supports hot-swapping, allowing users to replace or add modules without disrupting system function.
Its durable metal frame and versatile mounting options make it ideal for harsh industrial situations.
Whether you're expanding a production line or integrating several control domains, the 1756-A17 provides the space, dependability, and performance you need to scale your automation system.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical & Physical:
Total Slots: 17 (1 for power supply, 16 for modules).
Dimensions:
Width: 698 mm (27.5 in).
Height: 145 mm (5.71 in).
Depth: 145 mm (5.71 in).
Weight: Approx. 2.5 kg (5.5 lb).
Mounting Options: Panel or DIN rail.
Backplane Type: Passive backplane for ControlLogix modules.
Backplane Current Capacity:
1.2V DC: 1.5 A max per slot.
3.3V DC: 4.0 A max per slot.
5.1V DC: 6.0 A max per slot (15.0 A total).
24V DC: 2.8 A max per slot.
Power & Thermal:
Power Consumption: ~2.0 W.
Thermal Dissipation: ~6.8 BTU/hr.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
