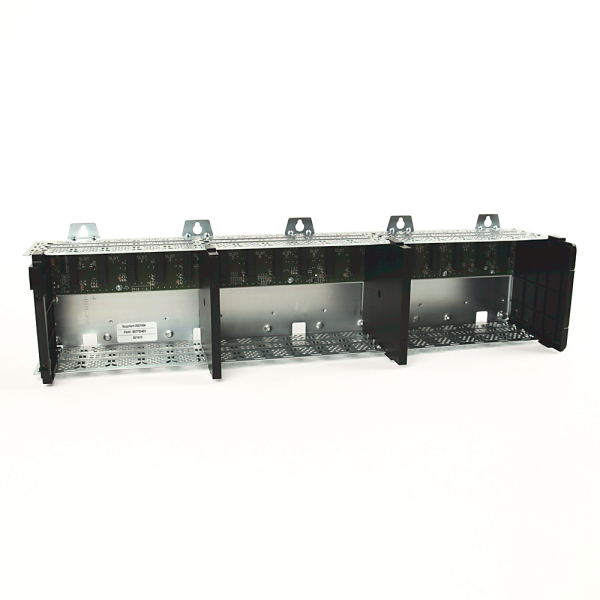

ControlLogix 17 Slots Chassis
SKU: 1756-A17K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Rockwell Automation's ControlLogix system, which is intended for large-scale industrial control applications, has a 17-slot chassis called the 1756-A17K.
The "K" suffix denotes conformal coating, which shields internal circuitry from moisture, dust, and corrosive environments—ideal for severe industrial settings.
There are 17 module slots for I/O, connectivity, and processing modules.
Conformal coating improves durability in demanding settings.
High backplane bandwidth enables quick data interchange between modules.
Horizontal mounting in control panels.
Open-style enclosure (installation is required in a protective cabinet).
Buy currently uses Select Automation shop pricing and checkout.
Physical Specifications:
Dimensions (W × H × D): 738 × 169 × 145 mm (29.06 × 6.65 × 5.71 in).
Minimum Cabinet Size: 914 × 762 × 203 mm (36 × 30 × 8 in).
Weight: Approx. 2.2 kg (4.8 lb).
Mounting: Horizontal back-panel only.
Slots: 17 module slots.
Electrical Specifications:
Backplane Current Capacity:
@ 1.2V DC: 1.5 A.
@ 3.3V DC: 4 A.
@ 5.1V DC: 15 A total, 6 A per slot.
@ 24V DC: 2.8 A.
Power Consumption: 1.8 W.
Heat Dissipation: 6.1 BTU/hr.
Isolation Voltage: Determined by installed power supply and modules.
Environmental Ratings:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Humidity: 5% to 95% non-condensing.
Shock (Operating): 30 g.
Shock (non-operating): 50 g.
Vibration: 2 g @ 10–500 Hz.
Enclosure Type: Open style (requires protective cabinet).
