      ControlLogix 7 Slots XT Chassis

      SKU: 1756-A7XT

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The ControlLogix-XT 1756-A7XT is a ruggedized 7-slot chassis intended for use in tough industrial environments. It may hold any combination of ControlLogix modules, including controllers, I/O, communication, and specialty modules, and it only allows horizontal back-panel mounting. The A7XT, which has conformal coating and fulfils ISA G3 environmental standards, is excellent for applications in oil and gas, mining, chemical processing, and outdoor installations. Slots: 7 module slots with snap-in retention guides. Backplane: High-speed communication and power distribution. Mounting: Horizontal panel mount only. Environmental Protection: Operating Temp: –25°C to +70°C (–13°F to +158°F). Humidity: 5–95% non-condensing. Conformal coating for corrosion resistance. Certifications: UL Listed for Class I, Div 2 hazardous locations. CSA and FM approved. Wiring Requirements: Functional ground: 8 AWG copper. Protective ground: 14 AWG copper. Weight: ~2.4 lb (1.1 kg). Minimum Cabinet Size: 20 x 24 x 8 inches.

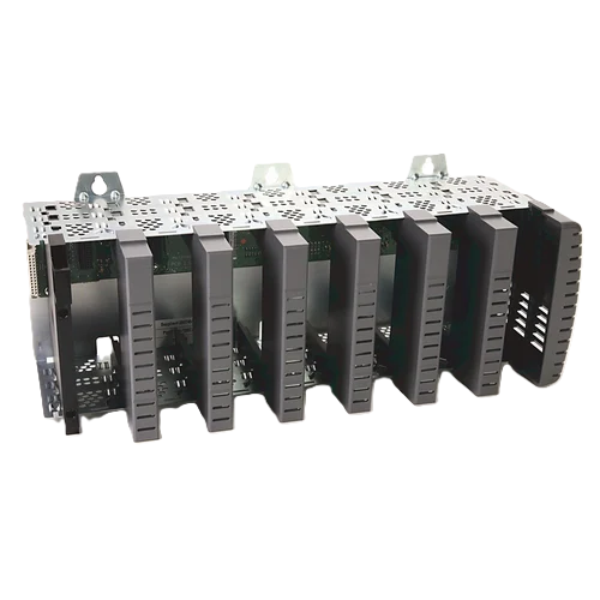

      1756-A7XT
      Alternative image 1
      General Features: Chassis Type: ControlLogix-XT (Extended Temperature). Slots: 7 module slots. Mounting Orientation: Horizontal back-panel only. Conformal Coating: Yes (for protection against moisture, dust, and corrosive gases). Backplane Current Capacity: 1.2V DC: 1.5 A max. 3.3V DC: 4 A max. 5V DC: 15 A max. 24V DC: 6 A max. Environmental Ratings: Operating Temperature: –25°C to +70°C (–13°F to +158°F). Storage Temperature: –40°C to +85°C (–40°F to +185°F). Humidity: 5% to 95%, non-condensing. Shock Resistance: 30g operational. Vibration Resistance: 10–500 Hz, 5g. Certifications & Protection: Hazardous Location Approval: UL Listed: Class I, Div 2, Groups A, B, C, D. CSA Certified. FM Approved. Corrosion Testing: ASTM B845-97 Method K + Rockwell proprietary tests. Recommended Use: Harsh environments like oil & gas, mining, chemical processing. Physical Dimensions: Width: ~35.6 cm (14.0 in.). Height: ~14 cm (5.5 in.). Depth: ~14 cm (5.5 in.). Weight: ~1.8 kg (4 lbs).
