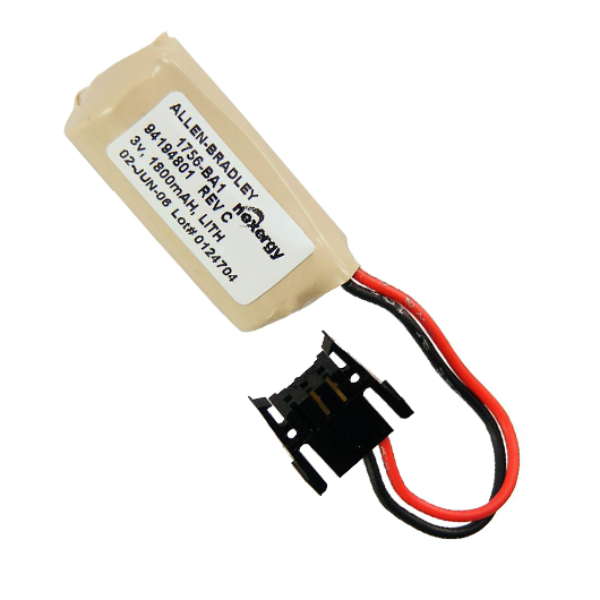

ControlLogix FlexLogix Battery
SKU: 1756-BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-BA1 is a lithium battery used in ControlLogix and FlexLogix controllers to keep volatile memory operational while the controller is turned off.
It ensures that user applications, configuration data, and diagnostic logs are saved during power outages or shutdowns.
This battery is critical for controllers that use RAM-based storage, particularly older types such as the 1756-L55, L6x, and FlexLogix 1794-L34.
It fits directly into the controller's battery compartment and is field changeable.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Battery Type: Lithium.
Voltage Rating: 3.0V DC.
Capacity: ~1200 mAh.
Typical Life:
2–3 years under normal conditions.
May vary based on temperature and controller usage.
Dimensions: Compact cylindrical form factor.
Compatibility:
ControlLogix: 1756-L55, L61, L62, L63.
FlexLogix: 1794-L34.
Installation:
Tool-free replacement.
Controller must be in Program mode or powered down.
Storage Conditions:
Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
