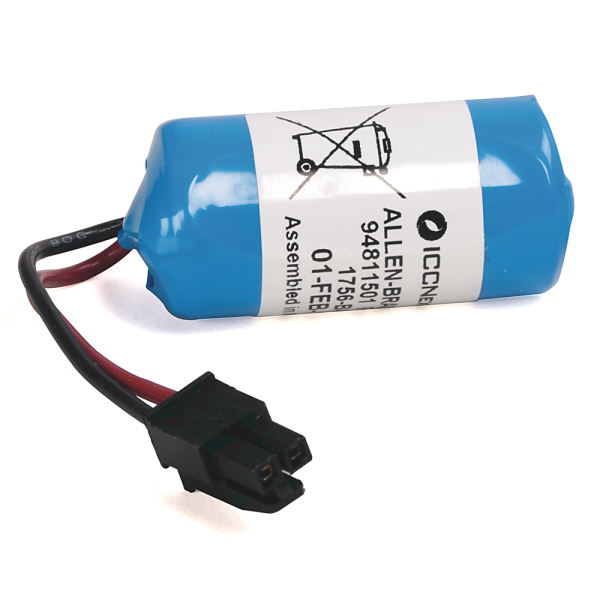

ControlLogix L6X Ser B ONLY Battery Assy
SKU: 1756-BA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-BA2 lithium battery module is intended exclusively for ControlLogix L6X Series B controllers.
Its major duty is to provide backup power for volatile memory, ensuring that essential data—such as tag values and diagnostics—is not lost during power outages or controller shutdowns.
This battery is required to preserve system integrity in industrial automation situations where memory retention is critical.
It has a plug-in design for quick installation and replacement, but is not compatible with Series A or L7X controllers.
The 1756-BA2 normally lasts 3-5 years under normal operating circumstances and should be changed ahead of time to avoid data loss.
Buy currently uses Select Automation shop pricing and checkout.
Battery Specifications:
Part Number: 1756-BA2.
Type: Lithium battery assembly.
Nominal Voltage: 3.0 VDC.
Capacity: ~1,200 mAh.
Chemistry: Lithium thionyl chloride (Li-SOCl₂).
Connector Type: Custom plug compatible only with L6X Series B controllers.
Form Factor: Compact, internal mount within controller housing.
Battery Life: Typically, 3–5 years under normal operating conditions.
Replacement Interval: Recommended every 3 years or when low battery warning appears.
Compatibility:
Controller Series:
Compatible only with ControlLogix L6X Series B controllers.
Not compatible with Series A or L7X controllers.
Function: Maintains volatile memory (e.g., tag values, diagnostics) during power loss.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
