placement Battery For 1756-BATM
SKU: 1756-BATA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

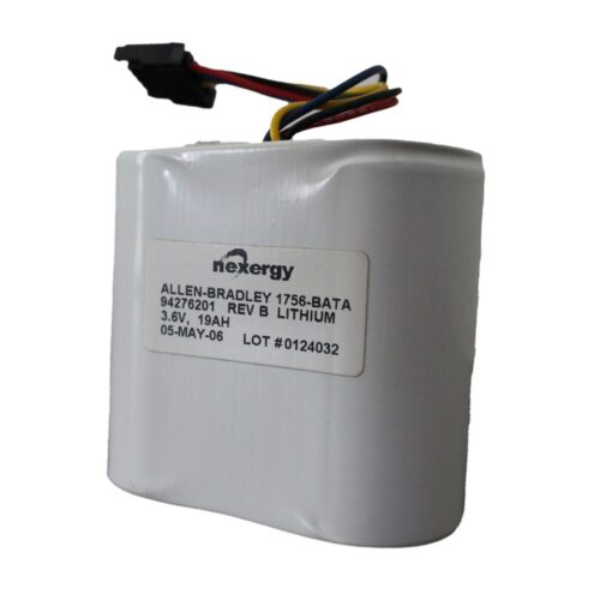

A replacement lithium battery made especially to work with the 1756-BATM battery module in ControlLogix systems is the 1756-BATA.
Its major duty is to supply backup power to the controller's memory, ensuring that vital data such as user applications and configuration settings are preserved during power outages or shutdowns.
This battery is part of a modular backup system that works with newer ControlLogix controllers such as the 1756-L7x series, which rely on the 1756-BATM module for non-volatile memory support.
The 1756-BATA fits directly into the 1756-BATM and is field replaceable.
Key Features:
Battery Type: Industrial-grade lithium.
Voltage: 3.0V DC.
Typical Life: 3–5 years depending on usage and environment.
Installation: Plugs into the 1756-BATM module (not directly into the controller).
Purpose: Maintains controller memory during power loss.
Compatibility:
1756-BATM battery module.
ControlLogix 1756-L7x controllers (via BATM).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Battery Type: Industrial-grade lithium.
Voltage Rating: 3.0V DC.
Capacity: Approximately 1200 mAh.
Typical Life Span: 3 to 5 years (depending on usage and environment).
Form Factor: Compact cylindrical design.
Compatibility:
Specifically designed for the 1756-BATM battery module.
Supports ControlLogix 1756-L7x controllers via BATM.
Installation:
Plugs into the 1756-BATM module (not directly into controller).
Requires controller to be in Program mode or powered down during replacement.
Hot-Swappable: No.
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity Range: 5% to 95%, non-condensing.
Shelf Life: Up to 10 years (if stored properly).
Disposal: Must follow local regulations for lithium battery disposal.
