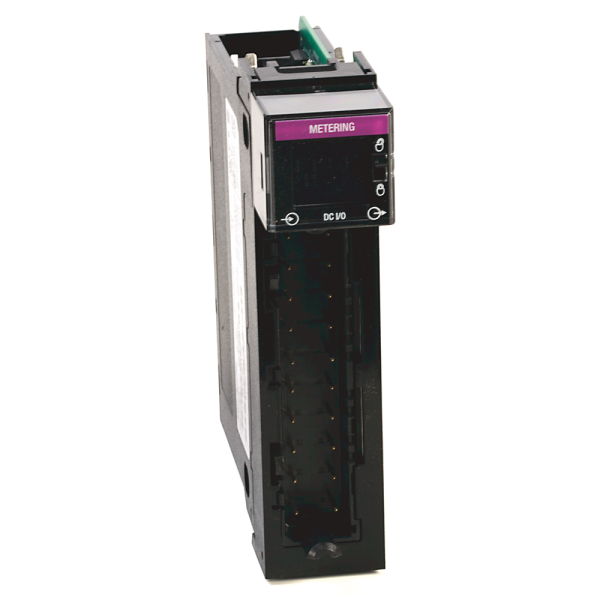

ControlLogix Config Flowmeter Module
SKU: 1756-CFM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CFM is an intelligent I/O module intended for high-speed flowmetering in industrial automation systems.
It effortlessly interfaces with the ControlLogix® platform, enabling users to precisely monitor and control flow-based processes.
This module is appropriate for applications that require pulse-based flowmeters, such as turbine, positive displacement, and magnetic kinds.
It has numerous working modes and may be programmed for frequency measurement, rate calculation, and totalization.
It's an effective instrument for real-time flow monitoring, thanks to its broad input/output choices and fast performance.
Two high-speed pulse inputs for flowmeter signals.
Two isolated power MOSFET outputs for control actions.
Supports three modes: frequency, rate, and totalization.
High-resolution measurement allows for precise flow tracking.
Configuration is compatible with RSLogix 5000 / Studio 5000 software.
Listen-only functionality enables any controller to monitor the module without owning it.
RIUP-capable: Can be withdrawn or inserted with power.
Buy currently uses Select Automation shop pricing and checkout.
General:
Catalogue Number: 1756-CFM.
Module Type: Configurable Flowmeter Module.
Platform: ControlLogix®.
Function: High-speed flow metering for pulse-based flowmeters.
Configuration Software: RSLogix 5000 / Studio 5000.
Inputs:
Channels: 2 high-speed pulse inputs.
Input Type: Sourcing or sinking.
Frequency Range: Up to 100 kHz.
Input Voltage Range: 5–31.2V DC.
Isolation: Inputs are optically isolated.
Outputs:
Channels: 2 isolated power MOSFET outputs.
Output Type: Current sourcing.
Output Ratings:
Up to 1 A @ 10–31.2V DC.
Up to 20 mA @ 5V DC.
Isolation: Outputs are isolated from inputs and backplane.
Operational Modes:
Frequency Mode: Measures input pulse frequency.
Rate Mode: Calculates flow rate based on pulse frequency.
Totalization Mode: Accumulates total flow based on pulse count.
Controller Integration:
Owner Requirement: Must be owned by a Logix5550 or compatible controller.
Listen-Only Support: Any controller can monitor the module without owning it.
RIUP Support: Can be removed or inserted under power.
Environmental:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Humidity: 5% to 95% non-condensing.
