1756 Embedded Edge Compute

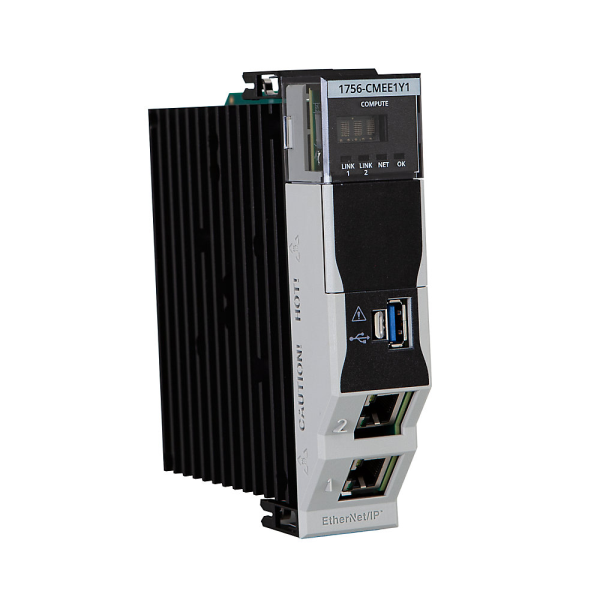

SKU: 1756-CMEE1Y1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CMEE1Y1 is a slot-based embedded edge computing module intended for ControlLogix® chassis systems.
It integrates Linux-based edge computing right into your PLC rack, enabling enhanced data processing, analytics, and connection without the need for external PCs or gateways.
This module is perfect for industrial applications that require real-time data processing, machine learning, remote access, or custom containerized workloads—all within an automation control environment.
The embedded Linux operating system allows for flexible application deployment.
Dual gigabit Ethernet ports provide safe IT/OT connectivity.
USB 3.0 port allows for peripheral access.
MicroSD card slot for extra storage.
Backplane integration enables high-speed access to controller tags.
Supports containerized workloads (such as Docker).
Remote access and diagnostics are available via FactoryTalk Remote Access.
Suitable for edge analytics, machine learning, and IIoT applications.
Buy currently uses Select Automation shop pricing and checkout.
Processor & Memory:
CPU: NXP i.MX8M Plus Quad-core ARM Cortex-A53.
RAM: 4 GB LPDDR4.
Storage:
16 GB onboard eMMC.
Expandable via rear-mounted microSD card (up to 32 GB supported).
Operating System & Software:
OS: Embedded Linux.
Supported Platforms:
FactoryTalk Optix.
FactoryTalk Remote Access.
Docker-compatible container runtime.
Studio 5000 Compatibility:
Logix Designer v28.00.00 or later.
Add-On Profile v40.00.45 or later.
Connectivity:
Ethernet Ports:
2× Gigabit Ethernet (RJ45, labelled eth1 and eth2).
USB:
1× USB 3.0 Type-A port.
Backplane Interface:
High-speed access to ControlLogix controller tags.
Remote Access:
Supports secure remote diagnostics and updates.
Physical & Environmental:
Form Factor: Standard ControlLogix slot module.
Dimensions: Approx. 5.7" × 1.4" × 5.7" (H × W × D).
Weight: ~0.5 kg.
Operating Temperature: 0°C to 60°C.
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Certifications: UL, CE, RoHS, and more.
