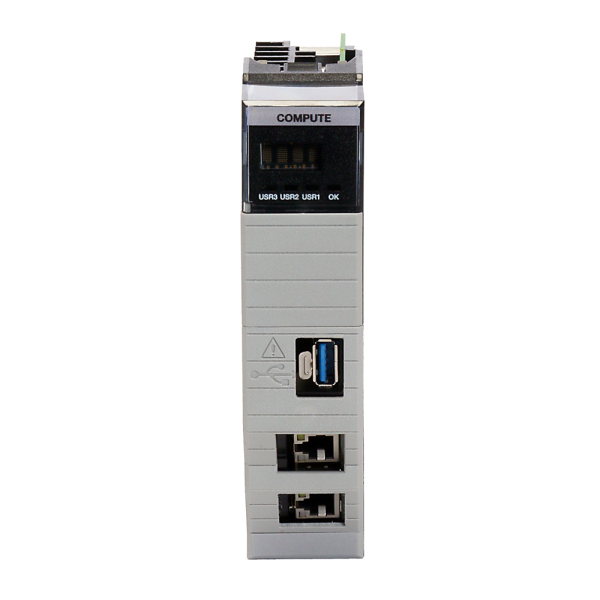

1756 Compute Module
SKU: 1756-CMS1B1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CMS1B1 is a ControlLogix slot-based compute module that allows you to run custom applications and third-party software directly within a ControlLogix chassis.
It has an Intel Atom dual-core CPU, 32 GB of solid-state storage, and a Linux-based operating system, allowing developers to use advanced analytics, edge computing, or bespoke logic with normal PLC control.
This module interfaces directly with ControlLogix 5570 or 5580 controllers via the system backplane and offers high-speed networking via dual Gigabit Ethernet connections, a USB 3.0 port, and a DisplayPort for attaching high-definition monitors.
It's perfect for industrial environments that need real-time data processing, visualization, or interaction with business systems.
Buy currently uses Select Automation shop pricing and checkout.
Hardware & Performance:
Processor: Intel Atom Dual-Core.
Storage: 32 GB Solid-State Drive (SSD).
Operating System: Embedded Linux.
Memory: Managed via OS (not fixed like standard controllers).
Backplane Interface: Direct communication with ControlLogix controllers.
Connectivity & I/O:
Ethernet Ports: 2 × Gigabit Ethernet.
USB Port: 1 × USB 3.0.
Display Output: 1 × DisplayPort (for high-definition monitor connection).
Status Indicators: 4-character scrolling display + programmable LEDs.
Power & Physical:
Power Consumption: 5.1 VDC @ 1.4 A.
Dimensions: 5.72 × 1.36 × 5.50 inches (H x W x D).
Battery: Supports real-time clock backup (replaceable).
Environmental Ratings:
Operating Conditions: Indoor use only, Pollution Degree 2.
Installation: Must be housed in a protective enclosure.
