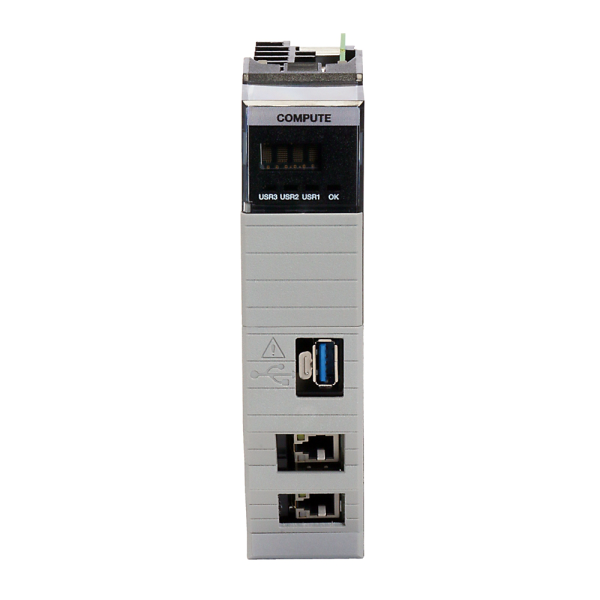

1756 Compute Module
SKU: 1756-CMS1C1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CMS1C1 is a standard-performance compute module for the ControlLogix® chassis that integrates secure Linux-based computing directly into your industrial control system.
It enables users to run bespoke programs, do local data processing, and connect IT/OT networks all on the same rack as their PLC.
This module is perfect for manufacturers and industrial operators who want to implement edge computing capabilities without using external PCs or gateways.
The CMS1C1 provides you with the flexibility and capability to safely and effectively host analytics tools, provide remote diagnostics, or integrate with cloud services.
Embedded Debian Linux operating system for hosting bespoke applications.
Intel Atom dual-core processor delivers dependable performance.
Onboard storage: 32 GB SSD.
Dual Gigabit Ethernet ports enable network connectivity.
Access to peripherals is provided via USB 3.0 and DisplayPort.
Backplane-based connectivity with ControlLogix controllers is seamless.
FactoryTalk Remote Access allows for secure remote management.
Buy currently uses Select Automation shop pricing and checkout.
Processing & Storage:
Processor: Intel Atom Dual-Core CPU.
Operating System: Embedded Linux 32-bit (Debian 8.9).
Storage: 32 GB Solid State Drive (SSD).
RAM: Not explicitly listed but optimized for standard-performance workloads.
Preloaded Applications: None (user installs custom apps).
Connectivity & Interfaces:
Ethernet Ports: 2× Gigabit Ethernet (RJ45).
USB Port: 1× USB 3.0 Type-A.
Display Output: 1× DisplayPort connector.
Backplane Access: High-speed tag access to ControlLogix controllers.
Rotary Switches: For future configuration use.
Reset Button: Factory reset capability on module face.
Security & Compliance:
Security Configuration:
Aligned with CIS Debian Linux Benchmark Level 1 (with exceptions).
Supports secure shell access and user account controls.
Certifications: UL, CE, RoHS (check datasheet for full list).
Remote Access: Compatible with FactoryTalk Remote Access.
Environmental Ratings:
Operating Temperature: 0°C to 60°C.
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Shock & Vibration: Industrial-grade tolerance (details in user manual).
