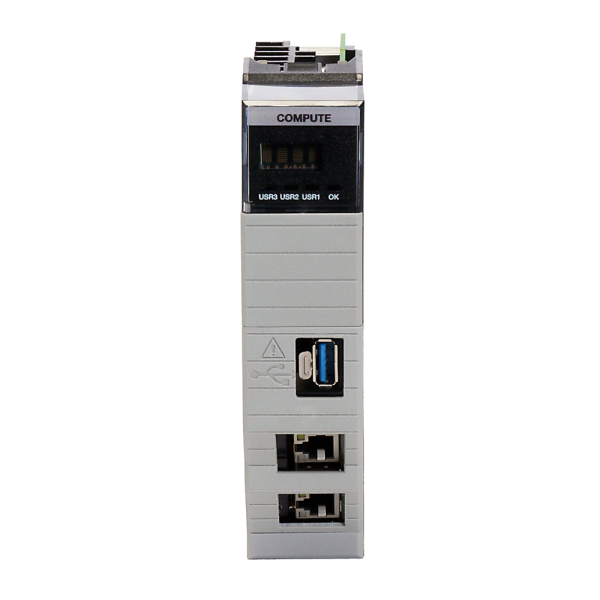

1756 Compute Module
SKU: 1756-CMS1D1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CMS1D1 is a powerful compute module for the ControlLogix platform that allows you to run custom Linux-based programs straight from your automation system.
It includes a 64-bit Debian Linux operating system, a 32 GB solid-state drive (SSD), and DDR RAM, allowing for fast data processing, edge computing, and safe integration with enterprise systems.
This module enables customers to deploy third-party software, perform real-time analytics, log data, and connect to cloud platforms without the need for additional PCs or gateways.
It has two Ethernet connections, USB connectivity, and a display port for easy access, as well as a Trusted Platform Module (TPM 2.0) for increased security.
The 1756-CMS1D1 is ideal for smart manufacturing and IIoT applications, as it puts flexible, high-performance computing at the centre of your ControlLogix system.
Buy currently uses Select Automation shop pricing and checkout.
System Overview:
Operating System: Embedded Linux 64-bit (Debian).
Storage: 32 GB Solid-State Drive (SSD).
Memory: DDR RAM (faster than SDRAM, supports high-speed data transfer).
Processor Architecture: 64-bit industrial-grade CPU.
Hardware Interfaces:
Ethernet Ports:
Dual ports labelled eth0 (top) and eth1 (bottom).
Used for network communication and remote access.
USB Ports:
For connecting peripherals (e.g., keyboard, mouse, external storage).
DisplayPort:
For connecting a monitor to interact with the embedded OS.
Real-Time Clock:
Maintains time when powered off.
Battery:
Internal holder for RTC backup.
Security Features:
TPM 2.0 (Trusted Platform Module):
Hardware-based security for verifying software integrity.
Enabled by default; can be disabled via BIOS settings.
Functional Capabilities:
Application Support:
Run custom Linux applications.
Install commercial software packages.
Use backplane API to interact with ControlLogix controllers.
User-Defined Indicators:
USR1, USR2, USR3 LEDs for application-specific status.
Control Functions:
Start, reset, and orderly shutdown of OS.
Scroll display for module status (e.g., INIT, RUNNING).
Environmental Ratings:
Operating Temperature: Typically, 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock/Vibration: Industrial-grade tolerance (30g shock, 5g vibration).
