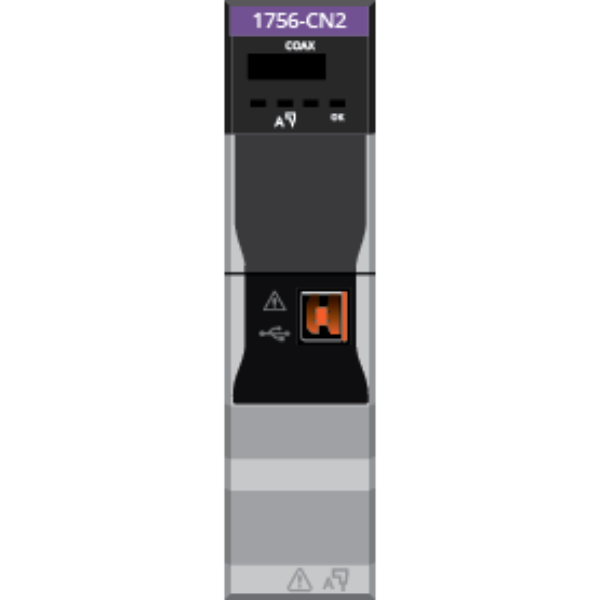

ControlLogix Communication Module
SKU: 1756-CN2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CN2 is a ControlNet communication interface module for the ControlLogix platform, which connects ControlLogix controllers to a ControlNet network.
It allows for high-speed, deterministic data interchange between controllers, I/O devices, HMIs, and other ControlNet-enabled components.
This module is best suited for applications requiring real-time control, scheduled data transfers, and network redundancy.
It accepts both scheduled (real-time) and unscheduled (messaging) communications and can function as a bridge or scanner in the ControlNet architecture.
Buy currently uses Select Automation shop pricing and checkout.
Network Capabilities:
Network Type: ControlNet.
Connector Type: BNC (coaxial).
Max Nodes: 99 per network.
Data Rate: 5 Mbps.
Traffic Types:
Scheduled (real-time I/O).
Unscheduled (messaging and configuration).
Redundancy Support: Yes (with dual media configuration).
Max Connections: 128 CIP connections.
Supported Protocols: CIP over ControlNet.
Mechanical:
Module Width: Single slot.
Backplane Current Load:
800 mA @ 5.1V DC.
3 mA @ 24V DC.
Status Indicators:
Module status.
Network status.
Activity indicators.
Hot-Swappable: Yes.
Configuration Software:
Studio 5000 Logix Designer.
RSNetWorx for ControlNet.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
