ControlLogix Redundant Supply Cable Down
SKU: 1756-CPR2D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

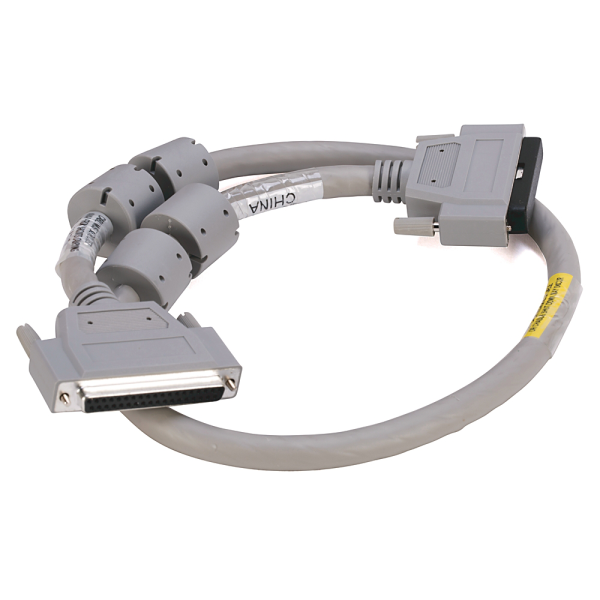

The 1756-CPR2D is a redundant power supply cable designed for use with Rockwell Automation's ControlLogix® chassis systems.
It links the 1756-PSCA2 chassis adapter to a redundant power supply module, ensuring uninterrupted power delivery in important applications.
What distinguishes the CPR2D is its "Down" connector orientation, which means the wire runs downward from the module—ideal for installations with limited vertical space or specific cable management requirements.
Redundant Power Configuration: Dual power inputs allow for fault-tolerant functioning.
Length: three feet (0.91 meters).
Connector orientation is downward-facing for compact installations.
Operating temperature range: 0°C to 60°C.
Input Current:
970 mA at 5.1 volts DC.
1.7 mA at 24 volts DC.
Power dissipation: 5.1 watts.
Thermal Dissipation: 17.4 BTU per hour.
System requirements: ControlLogix Series B chassis.
Application: High-availability industrial automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: ControlLogix Redundant Power Supply Cable.
Orientation: Downward connector (CPR2D = “Down”).
Cable Length: 3 feet (0.91 meters).
Weight: Approximately 0.64 lbs (0.293 kg).
Dimensions: 24 cm x 20.7 cm x 4.5 cm.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Input Current:
970 mA @ 5.1 V DC.
1.7 mA @ 24 V DC.
Power Dissipation: 5.1 Watts.
Thermal Dissipation: 17.4 BTU/hr.
Slot Width: Occupies 1 slot in the chassis.
System Compatibility: ControlLogix Series B with 1756-PSCA2 adapter.
Lifecycle Status: Active product.
Certifications: CCC, KC compliant.
UPC Code: 887172517556.
Country of Origin: United States.
