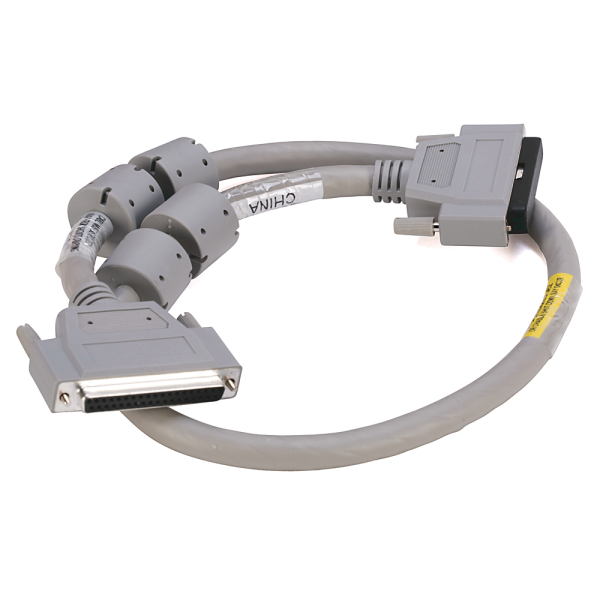

ControlLogix Redundant Supply Cable Up
SKU: 1756-CPR2U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-CPR2U is a redundant power supply cable developed for ControlLogix® chassis systems.
It links the 1756-PSCA2 chassis adapter to a redundant power supply module to ensure continuous power delivery in essential applications.
This variant is distinguished by its "Up" orientation—the cable includes a 90-degree upward moulded male connection, making it excellent for installations where upward routing is preferred or required due to space constraints.
Length: three feet (0.91 meters).
Connector orientation: 90° upward-moulded male connector.
Application: Enables redundant power input to the ControlLogix chassis.
Compatibility: Supports 1756-PSCA2 and ControlLogix Series B systems.
Operating temperature range: 0°C to 60°C.
Use Case: High-availability systems that need fault-tolerant power—ideal for manufacturing, energy, and process control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Catalogue Number: 1756-CPR2U.
Product Type: ControlLogix Redundant Supply Cable.
Connector Orientation: 90° upward moulded male chassis connector.
Cable Length: 3 feet (0.91 meters).
Weight: Approximately 0.67 kg.
Dimensions:
Width: 20.96 mm.
Height: 4.45 mm.
Depth: 24.38 mm.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Application: Connects 1756-PSCA2 chassis adapter to redundant power supply module.
System Compatibility: ControlLogix Series B chassis.
Certifications: CCC, KC compliant.
UPC Code: 887172517549.
Lifecycle Status: Active product.
