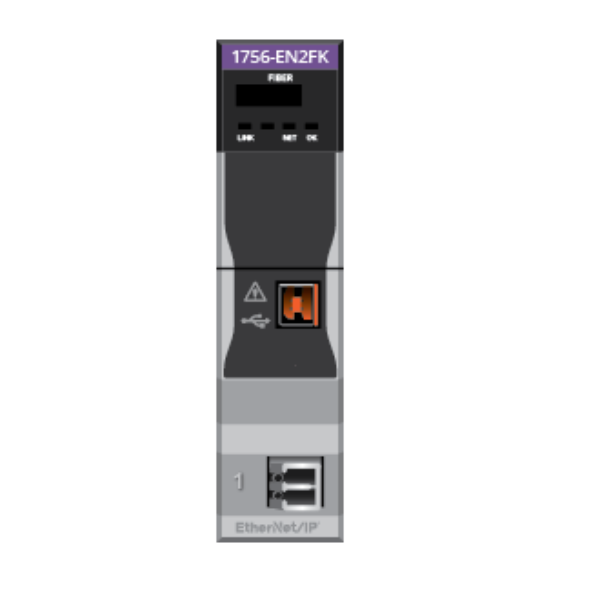

CLX ENet/IP 100M Fiber - CC
SKU: 1756-EN2FK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2FK is a robust, conformally coated EtherNet/IP communication module for the ControlLogix-XT platform that can support 100 Mbps fiber-optic Ethernet connections.
It makes it possible for controllers, remote I/O, HMIs, and other networked devices that use the EtherNet/IP protocol to exchange data at high speeds and with predictive accuracy.
Its XT rating and conformal coating make it suited for severe industrial applications characterized by high humidity, corrosive gasses, and extreme temperatures.
The module has advanced capabilities including CIP Sync, Integrated Motion over EtherNet/IP, and CIP Security, making it appropriate for both standard and safety-critical applications.
Whether in chemical plants, outdoor installations, or mission-critical control systems, the 1756-EN2FK provides dependable, secure, and high-performance fiber-based Ethernet connectivity.
Buy currently uses Select Automation shop pricing and checkout.
Network & Communication:
Protocol: EtherNet/IP.
Media Type: Fiber-optic (100 Mbps, fixed speed, no auto-negotiation).
Connections:
Up to 128 CIP connections.
Supports both I/O and messaging traffic.
Supported Features:
CIP Sync™ (time synchronization).
Integrated Motion over EtherNet/IP.
CIP Security (requires FactoryTalk Linx v6.11 or later).
Security: Supports Exact Match keying and CIP Security protocols.
Environmental Ratings:
Conformal Coating: Yes (K-suffix for corrosion and moisture protection).
Operating Temperature: –20°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Corrosion Resistance: Meets ANSI/ISA-S71.04 Class G1, G2, G3.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Module Integration:
Hot-Swappable: Yes.
Status Indicators: LEDs for link, activity, and module health.
Backplane Current Draw: ~400 mA @ 5.1V DC.
Fiber Connector Type: Typically, ST or SC (check installation guide).
Configuration Tools: Studio 5000, FactoryTalk Linx.
