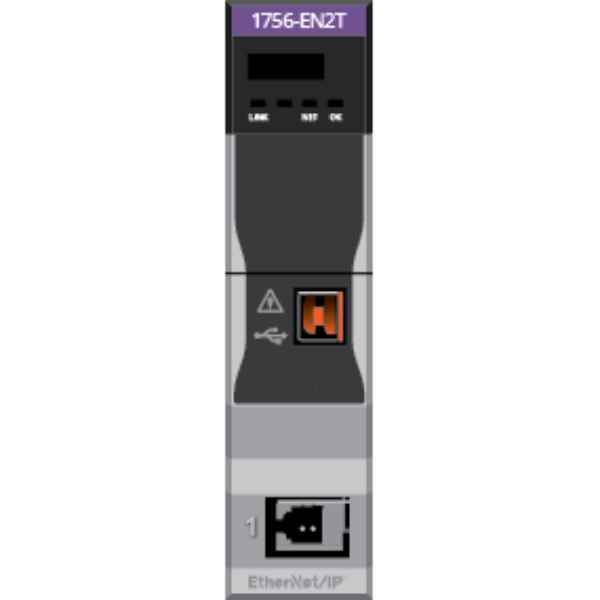

CLX ENet/IP 100M
SKU: 1756-EN2T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2T is a high-performance EtherNet/IP communication module for the ControlLogix platform that allows for quick and reliable data interchange between controllers, I/O devices, HMIs, and other networked components.
It offers 100 Mbps full-duplex Ethernet, making it perfect for demanding industrial applications that need real-time control and diagnostics.
This module is frequently used in distributed control systems, machine automation, and enterprise-wide integration.
It is compatible with CIP messaging, I/O data, and explicit messaging, and can be setup using Studio 5000 Logix Designer.
Buy currently uses Select Automation shop pricing and checkout.
Network Capabilities:
Network Type: EtherNet/IP.
Speed: 10/100 Mbps, full duplex.
Ports: 2 RJ-45 Ethernet ports (embedded switch for Device Level Ring or linear topology).
Max Connections: 128 CIP connections.
Max I/O Connections: 64.
Packet Rate: Up to 5000 packets/sec.
IP Addressing: Static, DHCP, BOOTP.
Supported Protocols:
EtherNet/IP.
TCP/IP.
UDP.
HTTP.
SNMP.
CIP.
Mechanical:
Module Width: Single slot.
Backplane Current Load:
800 mA @ 5.1V DC.
3 mA @ 24V DC.
Status Indicators:
Module status.
Network activity.
Link status.
Hot-Swappable: Yes.
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
