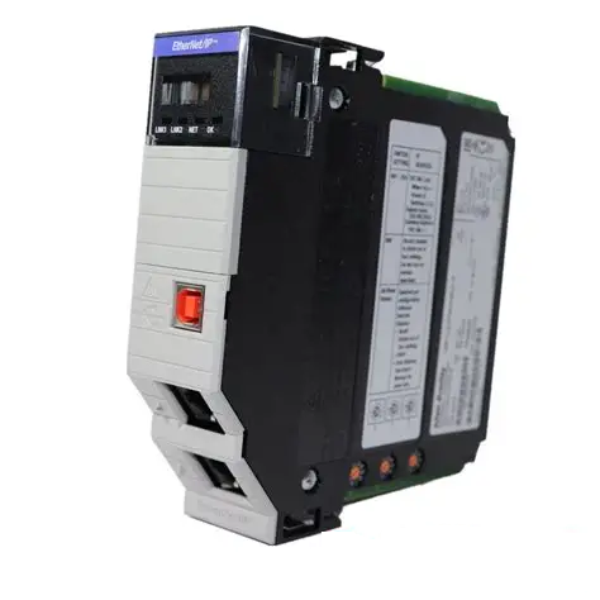

CLX ENet/IP 100M - CC
SKU: 1756-EN2TK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TK is a conformal coated variant of the 1756-EN2T EtherNet/IP connection module for the ControlLogix platform.
It offers industrial automation systems reliable and fast Ethernet connectivity, with full-duplex communication speeds of 10/100 Mbps.
The conformal coating shields the module's internal circuitry from harsh environmental conditions including humidity, corrosive gasses, and dust, making it perfect for use in marine, chemical, or outdoor applications where ordinary modules can degrade over time.
Buy currently uses Select Automation shop pricing and checkout.
Network Capabilities:
Network Type: EtherNet/IP.
Speed: 10/100 Mbps, full duplex.
Ports: 2 RJ-45 Ethernet ports (embedded switch for DLR or linear topology).
Max CIP Connections: 128.
Max I/O Connections: 64.
Packet Rate: Up to 5000 packets/sec.
IP Addressing: Static, DHCP, BOOTP.
Supported Protocols: EtherNet/IP, TCP/IP, UDP, SNMP, HTTP, CIP.
Mechanical:
Module Width: Single slot.
Backplane Current Load:
800 mA @ 5.1V DC.
3 mA @ 24V DC.
Status Indicators:
Module status.
Network activity.
Link status.
Hot-Swappable: Yes.
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Conformal Coating: Protects against moisture, corrosion, and contaminants.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
