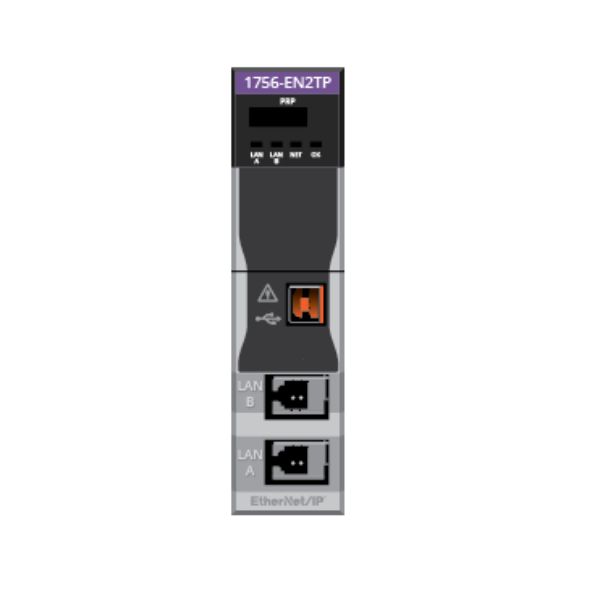

CLX ENet/IP 100M PRP
SKU: 1756-EN2TP
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TP is a high-performance Ethernet/IP module intended for Rockwell Automation's ControlLogix platform.
It allows for real-time, deterministic communication across industrial networks by utilizing the Parallel Redundancy Protocol (PRP), a fault-tolerant mechanism that ensures zero packet loss even if one network link fails.
Key features:
Dual Ethernet ports support PRP for seamless redundancy.
High-speed data exchange at 10/100 Mbps for time-critical applications.
Robust connectivity: Supports up to 256 CIP and 128 TCP connections.
Modular Integration: Easily integrates into the ControlLogix chassis for scalable system design.
Diagnostics: Includes tools for monitoring network health and troubleshooting.
This module is suited for industries such as automotive, oil & gas, and manufacturing, where uptime and dependability are critical.
It keeps your control system functioning even during network outages, making it essential for mission-critical automation.
Buy currently uses Select Automation shop pricing and checkout.
Communication & Network:
Protocol: EtherNet/IP with Parallel Redundancy Protocol (PRP).
Ports: Dual RJ45 Ethernet ports.
Speed: 10/100 Mbps.
Max TCP Connections: 128.
Max CIP Connections: 256.
Supported Media: Shielded/unshielded twisted pair (Cat 5 or better).
Electrical:
Backplane Current Draw: 1.0 A @ 5.1 VDC.
Power Dissipation: 17.4 BTU/hr.
Isolation Voltage: 30V (basic insulation).
Environmental Ratings:
Operating Temperature: 0°C to 60°C.
Storage Temperature: –40°C to 85°C.
Relative Humidity: 5% to 95% non-condensing.
Shock: 30 g operational.
Vibration: 2 g @ 10–500 Hz.
Physical Dimensions:
Height: 145 mm (5.72 in).
Width: 35 mm (1.38 in).
Depth: 140 mm (5.51 in).
Weight: Approx. 1.09 kg.
Certifications & Compliance:
Certifications: CE, CSA, KC, ODVA EtherNet/IP, RCM.
Standards: IEC 60068-2-1, -2, -6, -14, -27, -30; IEC 61000-4 series.
Hazardous Location Approvals: UKCA, IECEx, ATEX (varies by region).
