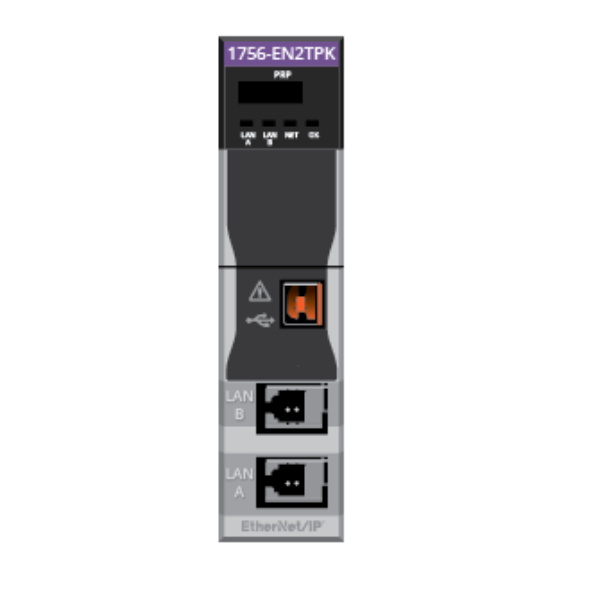

CLX ENet/IP 100M PRP - CC
SKU: 1756-EN2TPK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TPK is a high-performance EtherNet/IP connection module for the ControlLogix-XT platform that supports Parallel Redundancy Protocol (PRP) and has a conformal coating for added environmental protection.
It supports 100 Mbps copper Ethernet and is intended to provide ongoing network communication by sending duplicate packets across two separate Ethernet networks.
This dual-port module provides zero recovery time in the event of a network loss, making it perfect for mission-critical and safety-rated applications.
The conformal coating protects against moisture, dust, and corrosive gasses, enabling for dependable operation in severe industrial settings such as chemical plants, offshore facilities, and outdoor installations.
Assuring reliable, secure, and predictable communication for demanding control systems, the 1756-EN2TPK supports CIP Sync, Integrated Motion, and CIP Security.
Buy currently uses Select Automation shop pricing and checkout.
Network & Communication:
Protocol: EtherNet/IP.
Redundancy: Parallel Redundancy Protocol (PRP).
Media Type: Dual copper ports (RJ45), 100 Mbps full duplex.
Connections:
Up to 128 CIP connections.
Supports I/O, messaging, and motion traffic.
Advanced Features:
CIP Sync™ for time synchronization.
Integrated Motion over EtherNet/IP.
CIP Security (requires FactoryTalk Linx v6.11 or later).
Exact Match keying.
Environmental Ratings:
Conformal Coating: Yes (K-suffix for corrosion and moisture protection).
Operating Temperature: –20°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Corrosion Resistance: ANSI/ISA-S71.04 Class G1, G2, G3.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Module Integration:
Hot-Swappable: Yes.
Status Indicators: LEDs for link, activity, PRP status, and module health.
Backplane Current Draw: ~400 mA @ 5.1V DC.
Connector Type: Dual RJ45 ports for PRP redundancy.
Configuration Tools: Studio 5000, FactoryTalk Linx.
