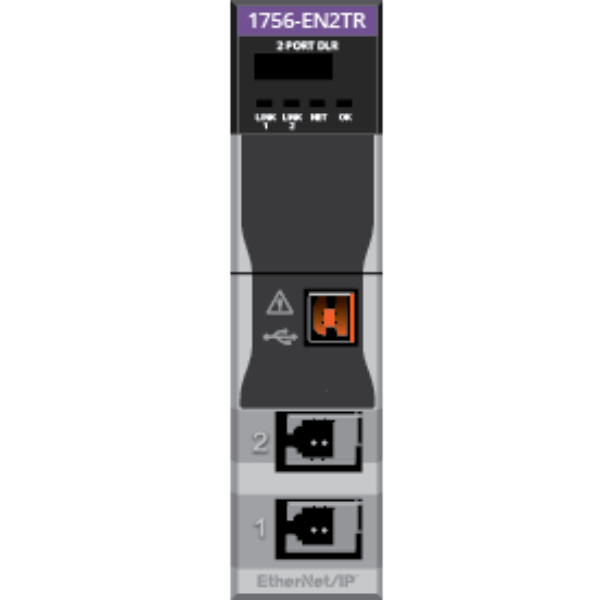

CLX ENet/IP 100M DLR
SKU: 1756-EN2TR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TR is a high-performance EtherNet/IP communication module for the ControlLogix platform that supports Device Level Ring (DLR) for network redundancy.
It provides fast, dependable, and fault-tolerant Ethernet connection at 100 Mbps full-duplex, making it perfect for essential industrial applications.
With two embedded Ethernet ports, the module supports DLR, linear, and star topologies, allowing for a more flexible network architecture.
It supports both implicit and explicit I/O messaging and is setup with Studio 5000 Logix Designer.
Buy currently uses Select Automation shop pricing and checkout.
Network Capabilities:
Network Type: EtherNet/IP.
Speed: 10/100 Mbps, full duplex.
Ports: 2 RJ-45 Ethernet ports (DLR-capable).
Max CIP Connections: 128.
Max I/O Connections: 64.
Packet Rate: Up to 5000 packets/sec.
IP Addressing: Static, DHCP, BOOTP.
Supported Protocols:
EtherNet/IP.
TCP/IP.
UDP.
SNMP.
HTTP.
CIP.
DLR Support: Yes (ring supervisor and node modes).
Mechanical:
Module Width: Single slot.
Backplane Current Load:
800 mA @ 5.1V DC.
3 mA @ 24V DC.
Status Indicators:
Module status.
Network activity.
Link status.
DLR status.
Hot-Swappable: Yes.
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
