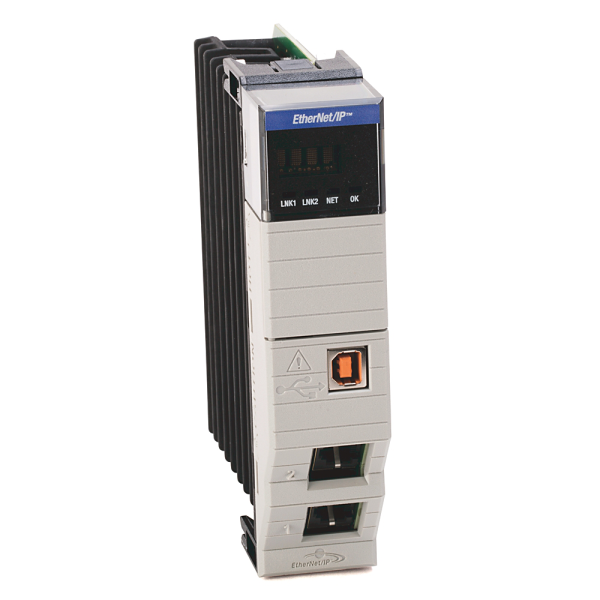

CLX ENet/IP 100M DLR - CC
SKU: 1756-EN2TRK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TRK is a high-performance communication module that supports EtherNet/IP and the Device Level Ring (DLR) topology.
It is part of the ControlLogix family and has conformal coating (CC) for better protection in demanding situations.
This module is suited for applications that require network redundancy, fast data interchange, and strong environmental resistance.
Dual Ethernet Ports: Supports DLR topology for quick network recovery.
High-Speed Communication: 10/100 Mbps data rates are supported.
Robust connectivity: supports up to 256 CIP and 128 TCP connections.
Conformal coating protects circuits against environmental pollutants.
Diagnostics: Includes tools for assessing network health and detecting faults.
Modular Design: Easily interfaces with the ControlLogix chassis.
Buy currently uses Select Automation shop pricing and checkout.
Communication & Network:
Protocol: EtherNet/IP.
Topology Support: Device Level Ring (DLR).
Ethernet Ports: 2× RJ45 (10/100 Mbps).
Max CIP Connections: 256.
Max TCP Connections: 128.
Media Type: Shielded or unshielded twisted pair (Cat 5e or better).
Electrical:
Backplane Current Draw: 1.0 A @ 5.1 VDC.
Power Dissipation: ~17.4 BTU/hr.
Isolation Voltage: 30V (basic insulation).
Environmental Ratings:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Shock: 30 g operational.
Vibration: 2 g @ 10–500 Hz.
Protection: Conformal coating for enhanced resistance to moisture, dust, and corrosive gases.
Physical Dimensions:
Height: 145 mm (5.72 in).
Width: 35 mm (1.38 in).
Depth: 140 mm (5.51 in).
Weight: ~1.09 kg.
Certifications & Compliance:
Certifications: CE, KC, RCM, ODVA EtherNet/IP.
Hazardous Location Approvals: ATEX, IECEx (region-specific).
