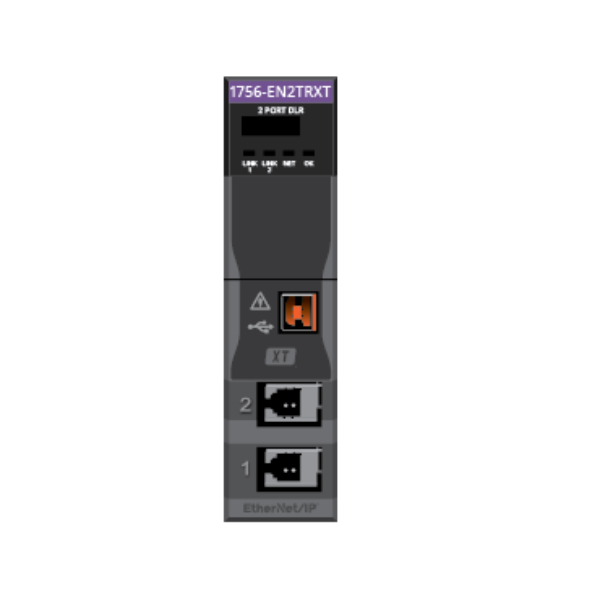

CLX ENet/IP 100M DLR - XT
SKU: 1756-EN2TRXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TRXT is a rugged, high-performance EtherNet/IP connection module for the ControlLogix-XT series that can work dependably in tough industrial situations.
It has two 10/100 Mbps Ethernet ports and an inbuilt switch that supports Device Level Ring (DLR) topology for fault-tolerant networking.
This module allows for rapid, secure, and scalable communication between ControlLogix controllers and other EtherNet/IP devices.
Its conformal coating is resistant to moisture, dust, and corrosive gases, making it suitable for use in outdoor installations, chemical plants, mining activities, and oil and gas facilities.
The 1756-EN2TRXT provides reliable communication and seamless integration into complex automation systems by supporting CIP messaging, linear and ring topologies, and high-speed data transmission.
Buy currently uses Select Automation shop pricing and checkout.
Core Features:
Ethernet Ports:
2x RJ-45 ports (10/100 Mbps).
Embedded switch for Device Level Ring (DLR) and linear topologies.
Network Protocols Supported:
EtherNet/IP.
TCP/IP.
CIP messaging.
DLR Support: Yes — enables fault-tolerant ring topology.
Max TCP/IP Connections: Up to 128 simultaneous connections.
Packet Rate: High-speed data throughput for real-time control.
Installation & Compatibility:
Chassis Compatibility: Fits any ControlLogix-XT chassis (e.g., 1756-A7XT).
Software Support: Studio 5000 Logix Designer.
Hot-Swappable: Yes.
Use Case: Ideal for distributed control systems, remote I/O, and high-availability networks.
Environmental Ratings:
Operating Temperature: –25°C to +70°C (–13°F to +158°F).
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Protection & Certifications:
Conformal Coating: Yes — XT-rated for corrosive environments.
Hazardous Location Ratings:
UL Listed: Class I, Div 2, Groups A, B, C, D.
CSA Certified.
CE Marked.
