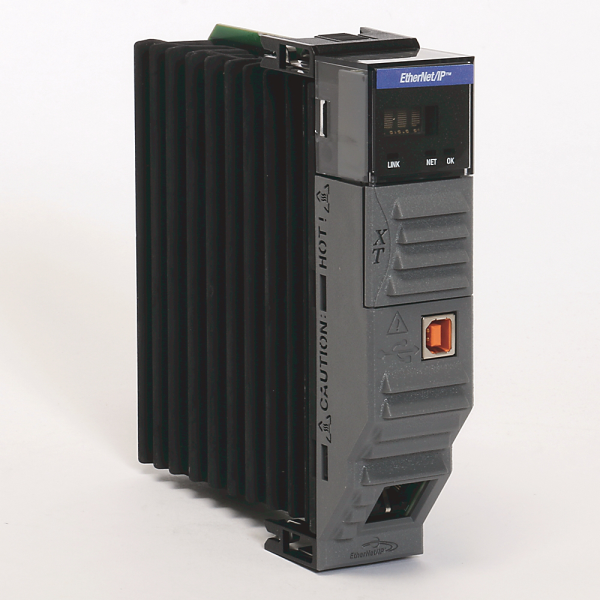

CLX ENet/IP 100M - XT
SKU: 1756-EN2TXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN2TXT is a high-performance EtherNet/IP bridge module from Rockwell Automation's ControlLogix-XT family, engineered for extreme temperatures and demanding industrial settings.
It offers quick, dependable communication between ControlLogix controllers and other devices via Ethernet/IP networks.
Dual Ethernet Ports: 10/100 Mbps speeds enable various network topologies, including Device Level Ring (DLR).
XT-Rated: Operates at extreme temperatures (-25°C to +70°C) and incorporates a conformal coating to protect against moisture, dust, and corrosive gasses.
High Capacity: Supports up to 256 CIP and 128 TCP connections, making it ideal for large, complicated applications.
Redundancy Ready: Compatible with redundant controller configurations for mission-critical applications.
Robust Design: Suitable for industries such as oil and gas, mining, and outdoor automation, where environmental robustness is critical.
Buy currently uses Select Automation shop pricing and checkout.
Communication:
Network Type: EtherNet/IP.
Ports: 2 × RJ45 (10/100 Mbps).
Supported Topologies: Star, Linear, Device Level Ring (DLR).
Max CIP Connections: 256.
Max TCP Connections: 128.
Media Type: Shielded or unshielded twisted pair (Cat 5e or better).
Electrical Characteristics:
Backplane Current Draw: 1.0 A @ 5.1 VDC.
Power Dissipation: ~17.4 BTU/hr.
Isolation Voltage: 30V (basic insulation).
Environmental Ratings:
Operating Temperature: –25°C to +70°C (–13°F to +158°F).
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95% non-condensing.
Shock: 30 g operational.
Vibration: 2 g @ 10–500 Hz.
Protection: Conformal coating for resistance to moisture, dust, and corrosive gases.
Physical Dimensions:
Height: 145 mm (5.72 in).
Width: 35 mm (1.38 in).
Depth: 140 mm (5.51 in).
Weight: ~1.09 kg.
Certifications & Compliance:
Certifications: CE, UL, KC, RCM.
Hazardous Location Approvals: ATEX, IECEx (region-specific).
Product Family: ControlLogix-XT (Extended Temperature).
