CLX ENet/IP 100M Motion

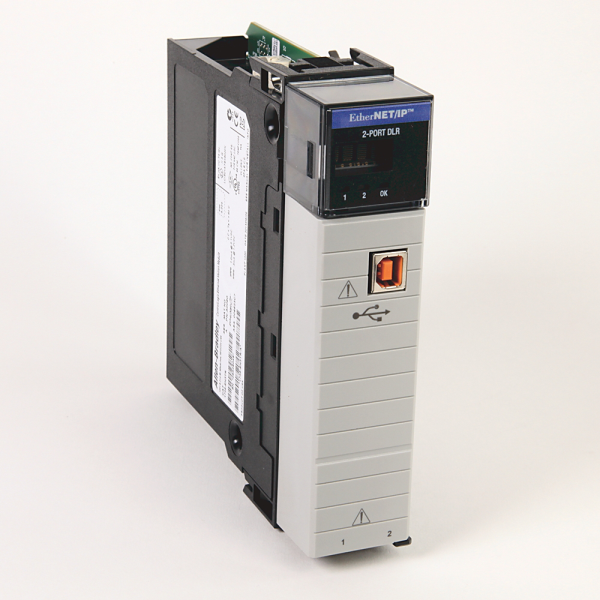

Description: The 1756-EN3TR is a high-performance EtherNet/IP bridge module for the ControlLogix platform, intended to handle demanding industrial communication and motion control applications. It has two 10/100 Mbps Ethernet ports with inbuilt switch technology, which supports Device Level Ring (DLR) and linear topologies for fault-tolerant networking. The module is designed for CIP Motion and supports up to 255 motion axes, making it perfect for synchronized multi-axis control in high-speed automation systems. It also supports up to 128 TCP/IP and 256 Logix connections, allowing reliable data flow across distributed architectures. With compatibility for IEEE 1588 Precision Time Protocol (PTP), the 1756-EN3TR ensures accurate time synchronization between devices, which is crucial for motion coordination and event sequencing. Its industrial-grade design incorporates port isolation, backup power input, and diagnostic tools like as SNMP v3 and port mirroring for intelligent traffic control.
