CLX ENet/IP 100M Motion - CC

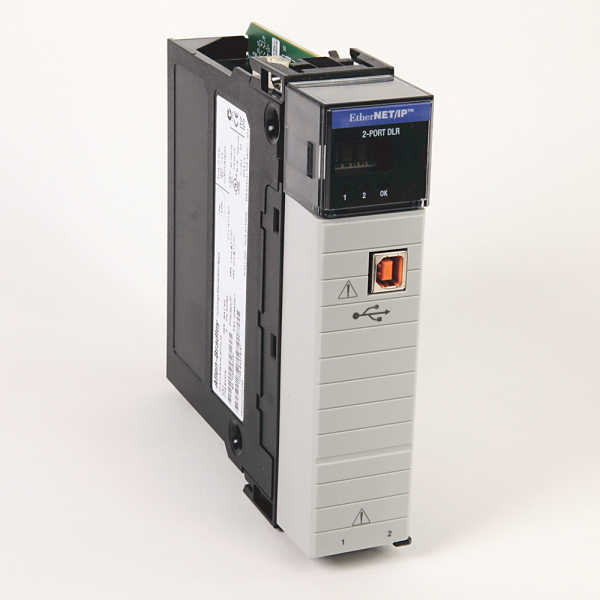

SKU: 1756-EN3TRK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN3TRK is a high-performance EtherNet/IP bridge module for the ControlLogix platform, with dual 10/100 Mbps Ethernet ports and an inbuilt switch supporting Device Level Ring (DLR) and linear topologies.
What distinguishes this model is its conformal coating, which shields internal components from moisture, dust, and corrosive gasses, making it suited for severe industrial applications.
The module is designed for CIP Motion and supports up to 128 motion axes, allowing for perfect synchronization across remote systems.
It also supports the IEEE 1588 Precision Time Protocol (PTP), which allows for accurate time stamping and motion synchronization. With up to 128 TCP/IP connections, it provides reliable communication for high-speed automation and control.
Whether in a chemical plant, an outdoor facility, or a high-vibration zone, the 1756-EN3TRK provides dependable, fault-tolerant networking with industrial-grade durability.
Buy currently uses Select Automation shop pricing and checkout.
Core Features:
Ethernet Ports:
2x RJ-45 (10/100 Mbps).
Embedded switch for linear and Device Level Ring (DLR) topologies.
Supported Protocols:
EtherNet/IP.
CIP Motion.
TCP/IP.
IEEE 1588 Precision Time Protocol (PTP) for time synchronization.
Motion Support:
Up to 128 motion axes.
Connections:
128 TCP/IP connections.
256 Logix connections.
Installation & Compatibility:
Chassis: Fits any standard 1756 ControlLogix chassis.
Software: Studio 5000 Logix Designer.
Hot-Swappable: Yes.
Diagnostics: SNMP v3, port mirroring, embedded web server.
Environmental Ratings:
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
