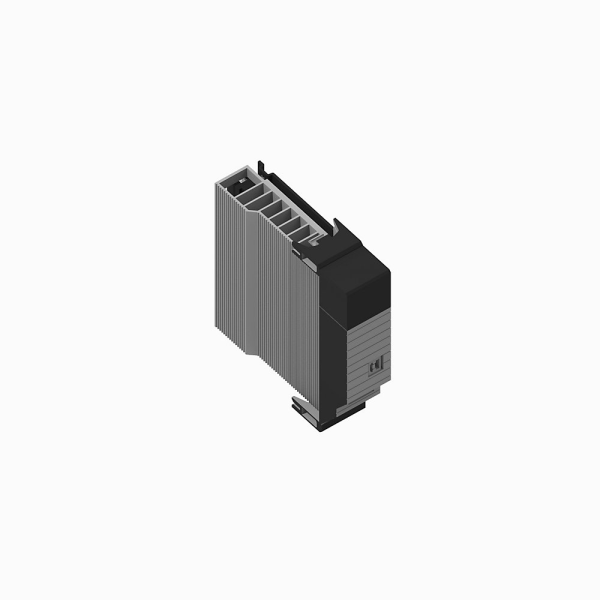

CLX ENet/IP 1G CIP Sec - CC
SKU: 1756-EN4TRK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN4TRK is a powerful EtherNet/IP™ bridge module developed for ControlLogix® systems.
It includes two 1 Gigabit Ethernet ports for fast, secure, and scalable industrial networking.
This module supports CIP Security, which allows encrypted and authenticated communication between devices, making it appropriate for industrial automation's modern cybersecurity requirements.
The "K" suffix refers to conformal coating, which protects the module's internal circuitry from moisture, dust, and corrosive gasses.
This makes it ideal for use in difficult conditions such as chemical facilities, outdoor installations, and high-humidity areas.
Dual 1 Gbps Ethernet connections provide high-speed data exchange.
CIP Security allows for encrypted and verified communication.
Conformal coating provides increased environmental durability.
It supports up to 512 TCP connections and 256 motion axes.
Compatible with the Parallel Redundancy Protocol (PRP) for fault-tolerant networking.
Buy currently uses Select Automation shop pricing and checkout.
Network & Communication:
Network Type: EtherNet/IP™.
Ports: 2 × RJ45 (10/100/1000 Mbps).
Max TCP Connections: 512.
Max Motion Axes Supported: 256.
CIP Security: Supported (except in redundant adapter mode).
Parallel Redundancy Protocol (PRP): Supported with firmware v4.001 and above.
IP Address Configuration: Rotary switches (X, Y, Z) for manual setup.
Electrical & Power:
Backplane Power Consumption: ~5.1 W.
Isolation Voltage: 30V (continuous), reinforced insulation.
Power Supply Compatibility: Standard ControlLogix chassis power supplies.
Environmental Ratings:
Operating Temperature: 0 to 60 °C.
Storage Temperature: –40 to +85 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: Yes — protects against moisture, dust, and corrosive gases.
Physical Characteristics:
Mounting: Standard ControlLogix chassis slot.
Dimensions: Matches standard communication module footprint.
Weight: Approx. 0.5 kg.
Status Indicators: LEDs for module health, network activity, and connection status.
Certifications & Compliance:
Certifications: UL, CE, KCC, RCM, and others.
Hazardous Location Ratings: Class I Div 2, Zone 2 compliant.
Security Standards: CIP Security (ISA/IEC 62443 aligned).
