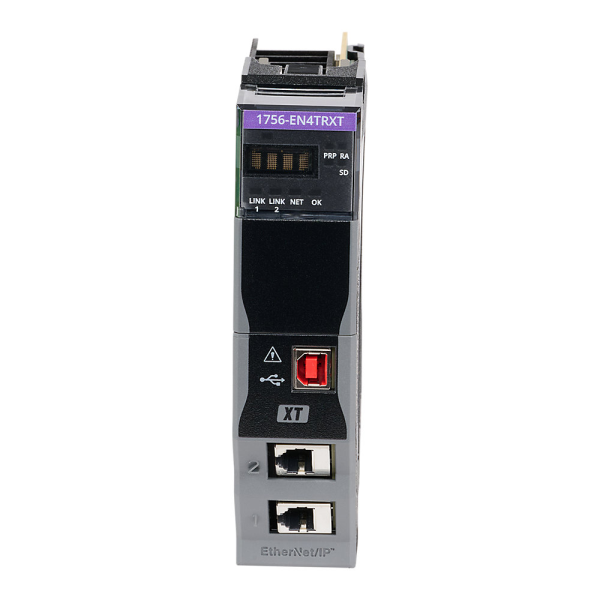

CLX ENet/IP 1G CIP Sec - XT
SKU: 1756-EN4TRXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-EN4TRXT is a rugged, high-performance EtherNet/IP communication module for the ControlLogix-XT platform that is built to withstand harsh industrial settings.
It has four 10/100/1000 Mbps Ethernet ports, allowing for various network topologies such as star, linear, and Device Level Ring (DLR).
What distinguishes this module is its support for CIP Security, which enables encrypted communication and device authentication—essential for modern, cyber-resilient industrial networks.
The XT label indicates conformal coating and enhanced temperature limits, making it suitable for use in corrosive environments, outdoor installations, and high-vibration zones.
Motion control, event sequencing, and distributed automation all depend on precise time synchronization between devices, which the 1756-EN4TRXT provides with support for IEEE 1588 Precision Time Protocol (PTP).
Buy currently uses Select Automation shop pricing and checkout.
Core Features:
Ethernet Ports:
4x RJ-45 ports.
Speeds: 10 Mbps / 100 Mbps / 1 Gbps.
Embedded switch supports star, linear, and Device Level Ring (DLR) topologies.
Protocols Supported:
EtherNet/IP.
CIP Motion.
CIP Security (encrypted communication and device authentication).
IEEE 1588 Precision Time Protocol (PTP) for time synchronization.
Max Connections:
256 Logix connections.
128 TCP/IP connections.
Multicast Support:
Up to 32 multicast produced tags per controller.
Environmental Ratings:
Operating Temperature: –25°C to +70°C (–13°F to +158°F).
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Conformal Coating: Yes — XT-rated for corrosive and high-moisture environments.
