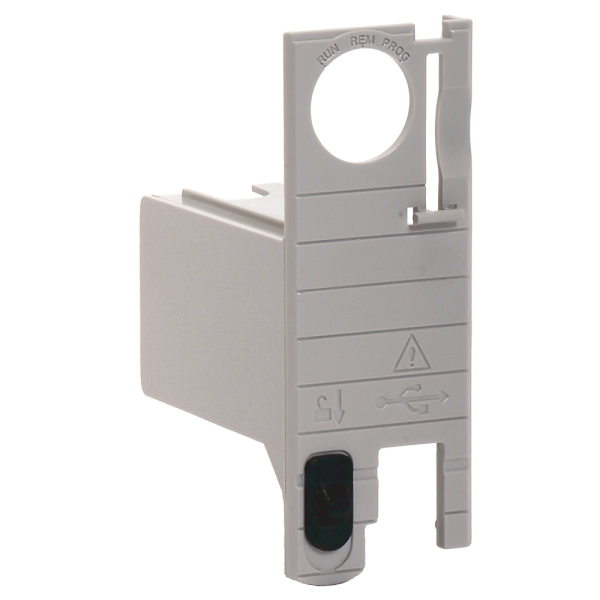

ControlLogix Energy Storage Module CAP
SKU: 1756-ESMCAPK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-ESMCAPK is an energy storage capacitor module for ControlLogix controllers, specifically intended to work with the 1756-L7x series.
It supplies backup power to the controller's volatile memory in the case of a power outage, ensuring that essential data is preserved until it can be safely stored or transferred.
This module is critical for ensuring system integrity in industrial automation environments where unplanned power outages could jeopardize operations or data.
Energy Storage Function: Supplies temporary power to the controller’s memory during power loss.
Compatibility: Designed for use with 1756-L7x ControlLogix controllers (e.g., 1756-L75, L73, etc.).
Hot-Swappable: Can be installed or replaced without removing the controller from the chassis.
Compact Design: Easily fits into the controller housing with a secure latch mechanism.
Maintenance-Free: No batteries required; uses capacitor-based energy storage.
Buy currently uses Select Automation shop pricing and checkout.
General Features:
Type: Capacitor-based energy storage module.
Function: Provides backup power to retain controller memory during power loss.
Compatibility: Designed for use with 1756-L7x ControlLogix controllers.
Installation: Snaps into the energy storage slot of the controller.
Hot-Swappable: Yes, when used with compatible controllers.
Maintenance-Free: No batteries required.
Electrical & Mechanical Specs:
Voltage Range: Internal to controller (no external power supply needed).
Backup Duration: Supports memory retention long enough for safe shutdown.
Construction: Compact and rugged industrial-grade housing.
Colour: Typically, black or grey.
Mounting: Secure latch mechanism within controller chassis.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
