FactoryTalk Historian Machine Edition
SKU: 1756-HIST2G
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

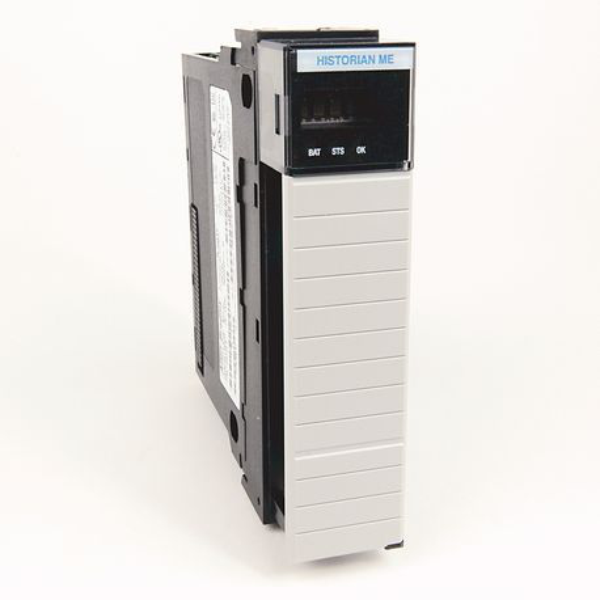

The 1756-HIST2G is an embedded historian module for the ControlLogix platform that collects, stores, and manages real-time production data directly in the control system.
Since it is powered by FactoryTalk Historian Machine Edition (ME) software, localized data logging is possible without requiring external PCs or servers.
The module, which includes an inbuilt 8 GB solid-state drive, securely stores time-series data from controllers, sensors, and devices, making it useful for applications such as process optimization, regulatory compliance, and machine performance analysis.
It includes built-in capabilities for tag configuration, diagnostics, and data export, making it perfect for industries including medicines, food and beverage, and energy.
The 1756-HIST2G provides more visibility into machine-level processes while decreasing network traffic and simplifying system architecture.
Buy currently uses Select Automation shop pricing and checkout.
Hardware Specifications:
Storage: 8 GB mSATA SLC solid-state drive.
Backplane Current Draw:
1.2 A @ 5.1V DC.
0.5 A @ 24V DC.
Hot-Swappable: Yes.
Mounting: ControlLogix chassis.
Network Speed: Supports 1 Gb Ethernet (Series B and C).
Data & Historian Capabilities:
Functions:
Create/edit/delete tags.
Configure and start/stop data collection.
Manage users and groups.
Time synchronization.
Backup/restore configuration.
View current, archive, and trend data.
Exception and compression filtering to reduce archive size.
Data Transfer: Configurable to external systems.
Web Interface: Accessible via FactoryTalk Historian ME web clients.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
