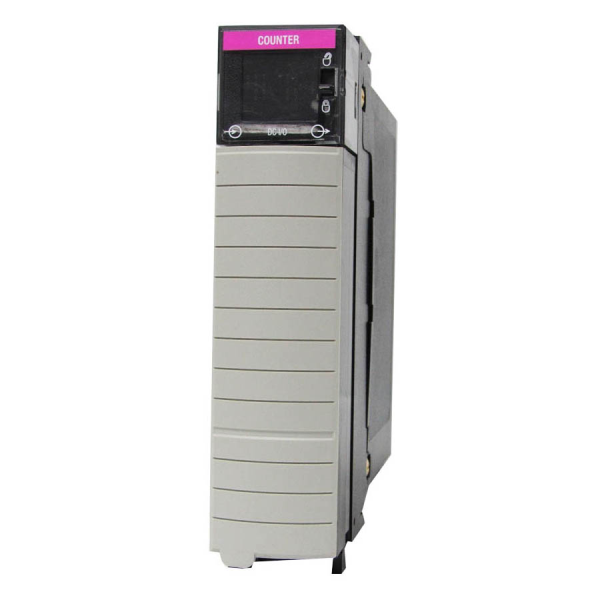

ControlLogix High Speed Counter Module
SKU: 1756-HSC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-HSC is a ControlLogix-specific high-speed counter module that counts pulses and measures frequency from fast-moving devices like encoders, proximity switches, and pulse generators.
It works independently of the controller's scan time, making it perfect for applications that require precise, real-time counting and control.
This clever I/O module has two counters, each with three inputs (A, B, and Z), and four high-speed digital outputs.
It can be set to counter, rate measurement, or encoder mode, and it has ON/OFF windows and rotating position sensing.
The module's outputs can be activated directly by input events, avoiding controller delays.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Number of Counters: 2.
Inputs per Counter: 3 (A, B, Z for gate/reset).
Input Voltage Range:
5V operation: 4.5–5.5V DC.
12/24V operation: 10–31.2V DC.
Input Frequency Limits:
Counter Mode: up to 1 MHz.
Rate Measurement: up to 500 kHz.
Encoder Mode: up to 250 kHz.
Debounce Filter: up to 70 Hz.
Counter Range: 0 to 16,777,214.
Number of Outputs: 4 (2 per common).
Output Type: High-speed digital switching.
Current Draw:
5.1V: 300 mA.
24V: 3 mA.
Power Dissipation: Max 5.6 W @ 60°C.
Mechanical:
Module Width: Single slot.
Connector Type: 36-pin RTB (e.g., 1756-TBS6H).
Status Indicators: LEDs for input/output activity.
Hot-Swappable: Yes (with RTB).
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
