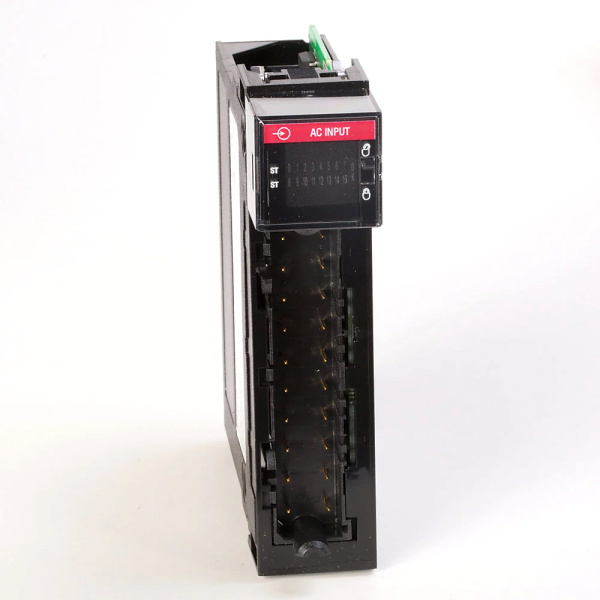

ControlLogix 16 Pt D/I 120V AC Module
SKU: 1756-IA16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IA16 is a 16-point digital input module for the ControlLogix platform that is intended to communicate with field devices that operate at 120V AC.
It reads the ON/OFF status of devices like push buttons, limit switches, and sensors and sends that information to the ControlLogix controller.
Each input channel is independently isolated, which improves noise immunity and protection in electrically noisy conditions.
The module has LED indications for each channel, which allows for easy visual diagnosis.
For industrial applications requiring dependable AC signal detection, it is perfect.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 74–132V AC.
Nominal Voltage: 120V AC.
Frequency Range: 47–63 Hz.
Number of Inputs: 16 individually isolated channels.
Input Current: 7.5 mA @ 120V AC.
Input Delay (Debounce):
ON: 20 ms.
OFF: 20 ms.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: One LED per input channel.
Hot-Swappable: Yes (with RTB).
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
