ControlLogix 16 Point Digital Input
SKU: 1756-IA16K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

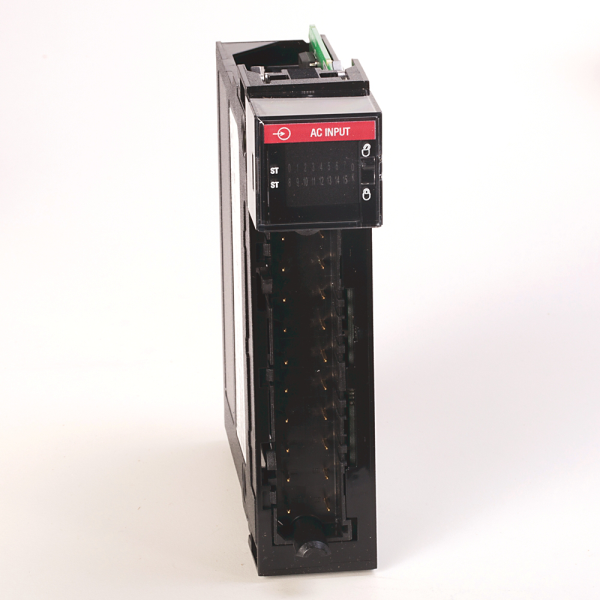

The Allen-Bradley 1756-IA16K is a 16-point AC digital input module intended for use in ControlLogix® chassis-based applications.
It detects the status of field devices such as switches, sensors, and relays that operate at 79-132V AC. Each input channel is a current sink, and the module has separate LED indicators for real-time status monitoring.
The "K" suffix indicates that the module has been conformally coated, which provides greater protection against moisture, dust, and corrosive environments, making it suited for tough industrial applications.
This module enables hot-swapping, which allows it to be installed or replaced without shutting down the system, and it works smoothly with Studio 5000 Logix Designer® for configuration and diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Functional:
16 AC digital input channels (current sinking).
Voltage range: 79–132V AC (nominal 120V AC).
Frequency range: 47–63 Hz.
Input current: ~7.5 mA @ 120V AC.
Input delay: 20 ms ON / 20 ms OFF.
Channel-to-backplane isolation for safety.
Indicators & Diagnostics:
Individual LED indicators for each input channel.
Module status and communication LEDs.
Supports fault detection and diagnostics via Studio 5000.
Environmental & Durability:
Conformal coating ("K" suffix) for protection against moisture, dust, and corrosion.
Operating temperature: –25°C to +60°C.
Humidity: 5% to 95% non-condensing.
Shock rating: 30G.
Vibration tolerance: 5G @ 10–500 Hz.
Installation & Integration:
Compatible with ControlLogix chassis.
Hot-swappable for easy maintenance.
Terminal block options: 1756-TBNH or 1756-TBSH.
Power dissipation: ~4.5 W.
Certifications: UL, CE, RoHS, BABA compliant.
