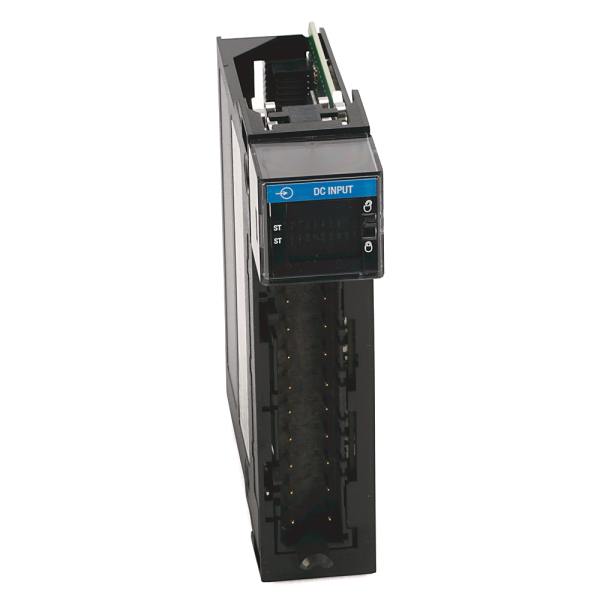

ControlLogix 16 Pt 12/24V DC D/I Module
SKU: 1756-IB16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB16 is a 16-point digital input module designed for 12/24V DC sinking inputs on the ControlLogix® platform.
It communicates with field devices such as sensors, switches, and other binary input sources, converting their ON/OFF signals to logic-level data for the controller.
This module is suited for fast and dependable input detection in industrial automation systems.
It features change-of-state detection, timestamping, and software-configurable filtering, making it ideal for applications that require accurate event tracking and noise immunity.
Each input is divided into two groups of eight, and the module supports hot-swapping, which allows for replacement without requiring a system shutdown.
It works flawlessly with Studio 5000 Logix Designer software and fits into any slot on a ControlLogix chassis.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input Channels: 16 (grouped in 2 sets of 8).
Voltage Category: 12/24V DC (sinking type).
Operating Voltage Range: 10–31.2V DC.
Nominal Input Voltage: 24V DC.
On-State Current:
Minimum: 2 mA @ 10V DC.
Maximum: 10 mA @ 31.2V DC.
Off-State Voltage: Max 5V.
Off-State Current: Max 1.5 mA.
Power Dissipation: Max 5.1 W @ 60°C.
Current Draw:
100 mA @ 5.1V.
2 mA @ 24V.
Inrush Current: Max 250 mA peak (decays in 22 ms).
Timing & Filtering:
Input Delay (Off → On):
Hardware: 290 µs (nominal), 1 ms (max).
Filter: 0, 1, or 2 ms (user-selectable).
Input Delay (On → Off):
Hardware: 700 µs (nominal), 2 ms (max).
Filter: 0, 1, 2, 9, or 18 ms (user-selectable).
Functional Features:
Input Impedance: Max 3.12 kΩ @ 31.2V DC.
Cyclic Update Time: 200 µs to 750 ms.
Timestamp Accuracy: ±200 µs.
Change-of-State Detection: Software configurable.
Module Keying: Electronic, software configurable.
Installation & Environment:
Terminal Block Options: 1756-TBNH or 1756-TBSH.
Operating Temp: 0°C to 60°C (32°F to 140°F).
Storage Temp: –40°C to 85°C (–40°F to 185°F).
Humidity: 5–95% non-condensing.
Vibration Resistance: 2 g @ 10–500 Hz.
Shock Resistance:
Operating: 30 g.
Non-operating: 50 g.
Isolation Voltage: 250V continuous (inputs-to-backplane and group-to-group).
