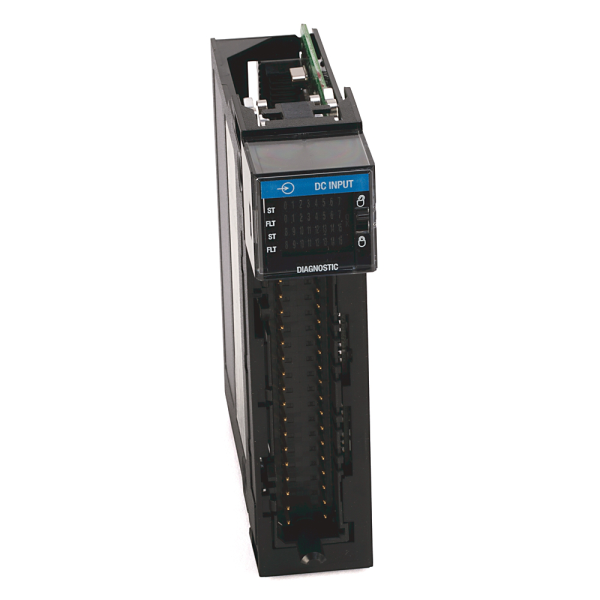

ControlLogix 16 Point D/I Module
SKU: 1756-IB16D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB16D is a 16-point DC digital input module for ControlLogix® systems that operates from 10 to 30 volts DC.
It has current-sinking inputs and field-side diagnostics, making it perfect for industrial applications that demand accurate input detection and fault monitoring.
This module is especially useful in systems that require wire-off detection, input status tracking, and real-time fault isolation to ensure uptime and safety.
Input type: DC digital (current sinking).
Voltage range: 10-30V DC (usually 12/24V DC).
Channels: 16 separately monitored inputs.
Diagnostics: Integrated wire-off detection and fault reporting.
LED indicators display per-channel status and module health.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input Type: DC digital (current sinking).
Voltage Range: 10–30V DC.
Nominal Voltage: 12/24V DC.
Number of Inputs: 16 channels.
Input Current: ~7 mA @ 24V DC.
Input Delay: Programmable filtering available.
Diagnostics: Wire-off detection and fault status per channel.
Indicators & Features:
Individual LED indicators for each input.
Module health and communication status LEDs.
Supports fault detection and reporting in Studio 5000.
Installation & Integration:
Mounts in any ControlLogix chassis slot.
Compatible with RTBs like 1756-TBNH and 1756-TBSH.
Hot-swappable for live replacement.
Power dissipation: ~5 W max.
Environmental Ratings:
Operating temperature: 0°C to +60°C.
Humidity: 5% to 95% non-condensing.
Shock: 30G operational.
Vibration: 5G @ 10–500 Hz.
