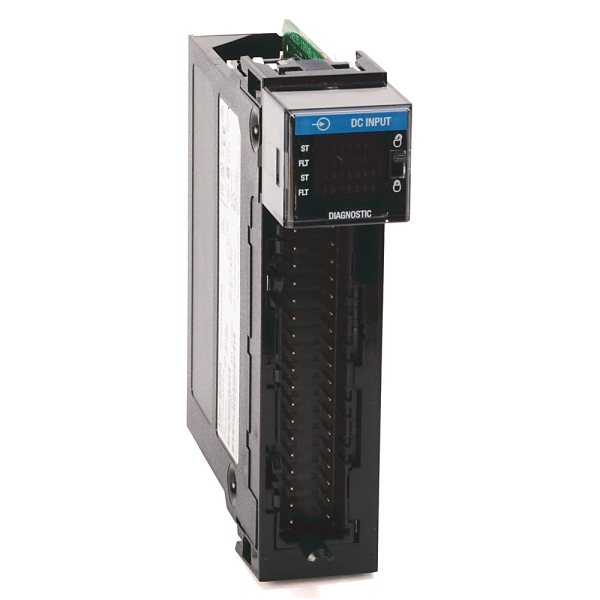

ControlLogix 16 Point D/I Module
SKU: 1756-IB16DK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB16DK is a 16-point DC digital input module for ControlLogix® systems with diagnostic capabilities and conformal coating (as indicated by the "K" suffix).
It accepts current-sinking inputs and operates in the 10-30V DC range, making it perfect for industrial settings where fault detection and environmental resistance are critical.
Wire-Off Detection: Provides notifications when field wiring is disconnected.
Pulse testing ensures the accuracy of the input signal.
Timestamping: Records fault occurrence and clearing times.
Note: It does not detect blown fuses.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input Type: DC digital (current sinking).
Voltage Range: 10–30V DC.
Nominal Voltage: 12/24V DC.
Input Current:
Min: 2 mA @ 10V DC.
Max: 13 mA @ 30V DC.
Off-State Voltage: Max 5V DC.
Off-State Current: Max 1.5 mA.
Inrush Current: Max 250 mA.
Power Dissipation: Max 5.8 W @ 60°C.
Backplane Current (5V): 0.84 W.
Timing & Filtering:
Input Delay (Off → On):
340 µs nominal + user-selectable filter (0, 1, or 2 ms).
Input Delay (On → Off):
740 µs nominal + filter (0, 1, 9, or 18 ms).
Diagnostics:
Wire-Off Detection: Yes.
Pulse Testing: Yes.
Timestamping: Yes.
Fault Logging: Records fault occurrence and clearance times.
Fuse Detection: Not supported.
Physical & Installation:
Module Width: Standard ControlLogix slot.
Terminal Block Options: 1756-TBCH or 1756-TBS6H.
Hot-Swappable: Yes.
Mounting: ControlLogix chassis.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95% non-condensing.
Shock: 30 g operational, 50 g non-operational.
Vibration: 10–500 Hz, 5 g.
