ControlLogix 16 Point Digital Input
SKU: 1756-IB16IF
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

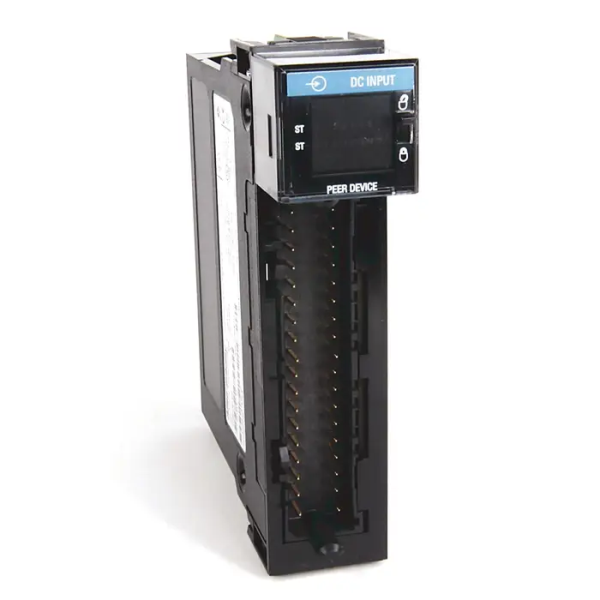

The 1756-IB16IF is a high-performance digital input module for the ControlLogix platform that includes 16 isolated DC input channels.
Each channel is designed to monitor 10-30V DC signals from field devices such as sensors, switches, and relays, with inputs electrically isolated to decrease noise and cross-channel interference.
This module is appropriate for applications that require signal integrity, mixed-voltage inputs, or improved protection against electrical faults.
It supports sink-type wiring, has status LEDs for each channel, and works flawlessly with the Studio 5000 software for diagnostics and configuration.
Whether in manufacturing, process control, or machine automation, the 1756-IB16IF provides dependable input monitoring with increased flexibility and protection.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 16 individually isolated digital inputs.
Voltage Range: 10–30V DC (nominal 24V DC).
Input Type: DC sink (current flows into the module).
Input Current: ~6 mA @ 24V DC.
Input Delay:
On: 0.5 ms.
Off: 0.5 ms.
Diagnostics:
Input status.
Module health.
Communication status.
Module Integration:
Status Indicators: Individual LEDs for each input channel.
Hot-Swappable: Yes.
Terminal Block Options:
36-pin RTB (Removable Terminal Block).
Compatible with 1492 IFM (Interface Modules).
Backplane Current Draw:
120 mA @ 5.1V DC.
100 mA @ 24V DC.
Power Dissipation: ~3.5 W.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
