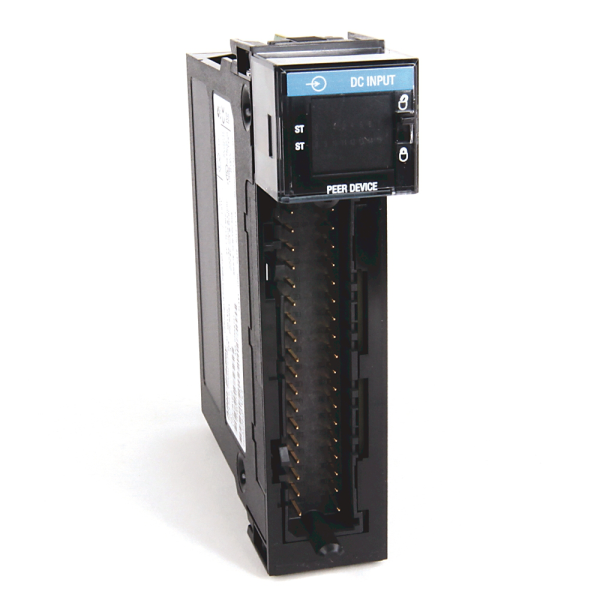

ControlLogix 16 Point Digital Input
SKU: 1756-IB16IFK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB16IFK is a digital input module kit for the ControlLogix platform that detects the ON/OFF status of field devices powered by 24V DC.
This kit comprises the 1756-IB16IF input module, a 1756-CPR2 power cable, and a 1756-PSCA2 chassis adapter, making it ideal for systems that require quick and reliable DC signal acquisition.
The module has 16 independently isolated inputs, which improves noise immunity and allows for flexible wiring across many voltage domains.
It's perfect for connecting sensors, switches, and other discrete devices in industrial automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 10–31.2V DC.
Nominal Voltage: 24V DC.
Number of Inputs: 16 individually isolated channels.
Input Current: 6 mA @ 24V DC.
Input Delay (Debounce):
ON: 0.5 ms.
OFF: 0.5 ms.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Mechanical:
Kit Includes:
1756-IB16IF module.
1756-CPR2 cable.
1756-PSCA2 adapter.
Mounting: External to chassis via adapter.
Status Indicators: One LED per input channel.
RTB Required: Yes (e.g., 1756-TBNH or 1756-TBSH).
Hot-Swappable: Yes (with RTB).
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
