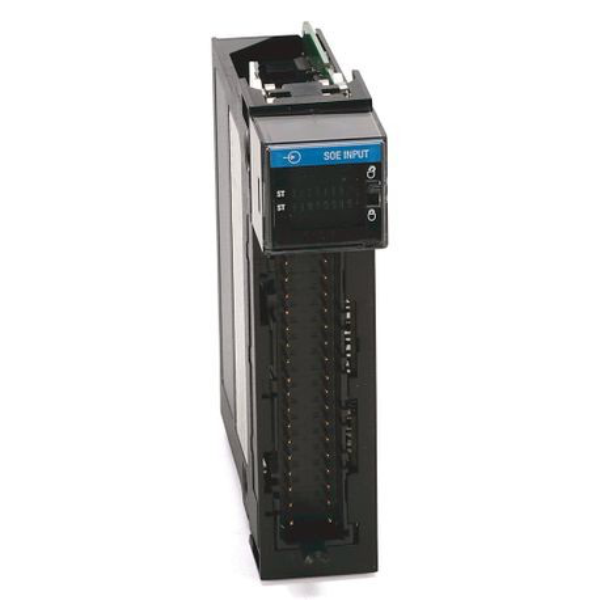

ControlLogix 16 Isolated Point Module
SKU: 1756-IB16ISOE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB16ISOE is a 16-point digital input module for the ControlLogix platform that captures high-speed, time-critical input events using per-point isolation.
Each input channel runs independently, making it excellent for applications that require electrical signal separation, such as mixed-voltage systems or loud industrial environments.
This module is part of the Sequence of Events (SOE) family, which means it can timestamp input transitions with microsecond accuracy.
It's notably valuable in power generation, process control, and safety-critical systems where knowing the exact sequence and timing of events is vital.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 10–31.2V DC.
Nominal Voltage: 24V DC.
Number of Inputs: 16 individually isolated channels.
Input Current: ~6 mA @ 24V DC.
Input Delay:
ON: 0.5 ms.
OFF: 0.5 ms.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Timestamp Resolution: 1 µs.
Timestamp Accuracy: ±100 µs typical.
Mechanical:
Module Width: Single slot.
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Status Indicators: One LED per input channel.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
